Universal 12 volt wireless remote control switch RM100
12V Universal Remote Control Switcher

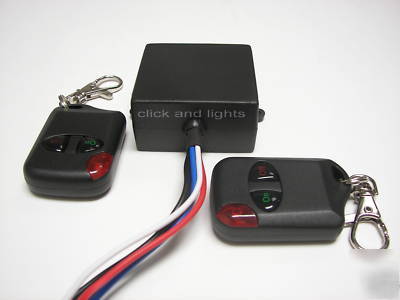

INCLUDE 2 REMOTE CONTROLS AND ONE RECEIVER KIT
-Remotely turn On and Off for any 12 Volt DC devices such as computer lighting & accessories, auto lighting kits, landscaping lighting, boat lighting or other electronic applications.
-Compact size and mounting holes make it easier for installation.
Range can be extending further depend in area, device setup and remote control battery strength
Receiver standby Current: 4.5mA
Relay contact operating load up to 8 amp max.
Operating voltage: 10Vdc to 18Vdc max; output voltage is adequate to input voltage

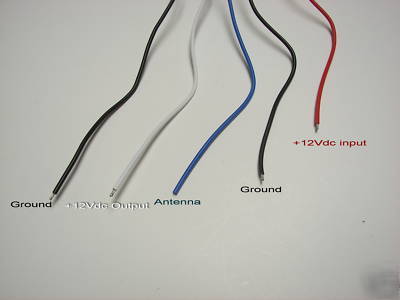

Red wire: 12vdc positive power input
Black wire x2: for ground or negative connection for both input power and output device
Green wire: Antenna, no connection required
White wire: 12Vdc positive power output when box is turn on
-An inline fuse is recommended to prevent any surge or short to this kit or your connected device.
-Do not connect directly to any 120/240VAC power without using a 12V AC/DC converter or adapter.
Connect power source 12vdc (+) to Red wire
Connect power source Ground (-) to Black wire (there are 2 black wires, both are the same)
Connect White wire to output device 12Vdc (+)
Connect Black wire to output device Ground (-)
Mount Blue wire (Antenna) to where you can get a best reception from remote control, make sure tip of antenna wire does not touch any live voltage.
If you need other way to control your device remotely, please check out our stores for more remote kit options.
