> Fujikura fsm-50S fiber fusion splicer FSM50S w/ cleaver
Fujikura fsm-50S fiber fusion splicer FSM50S w/ cleaver

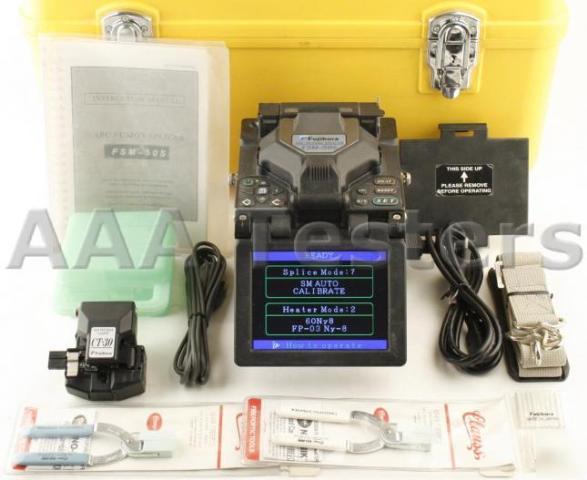

* Fujikura FSM-50S Arc Fusion Splicer
* Fujikura CT-30 Fiber Cleaver w/ Hard Case
* Fujikra ACD-11 AC Adapter/Battery Charger
* Clauss No-Nik 254 m Fiber Optic Stripper
* Clauss No-Nik 305 m Fiber Optic Stripper
* Hard Carrying Case w/ Strap
Fujikura AFL FSM-50S SM & MM Core Alignment Fusion Splicer
Includes A Fujikura CT-30 High Precision Fiber Cleaver, Carrying Case & Full Accessories!
This is a new standard of core to core aligning arc fusion splicer.
A number of improvements have been added to the performance-proven Profile Alignment System (PAS) platform, resulting in the smallest and lightest package of its kind. With improved splice & tube-heat time, the splicing operation is the world's fastest truly optimized for field use. Other valuable features include an ergonomic design, reduced numbers of operating steps and a powerful battery extend the boundaries of traditional field fusion splicing performance. The movable monitor and dual-direction operating system essentially gives the operator a choice of two splicers. With these features, the FSM-50S is now more than a tool, it is a work of art.
* Fully automatic core alignment with 9 second splice time for SM fiber
* Reduced splice protector shrink time now only 35 seconds
* Extremely compact and lightweight just 2.8kg
* Automatic fibre type identification
* Multi-position monitor for front or top mounting
* High capacity battery option for 120 splice/shrink cycles
* Fibre clamps integrated into wind protector to reduce operation time
Dual-directional operating system
The reversible monitor accommodates the user's ergonomic preference. With a control panel on each side, the ease of use is phenomenal.
Improved computer processing and newly introduced stepping motor help achieve 9 sec. splice time with SM fiber.
Advanced heater design shortens tube-heat time to 35 sec. with FP-03 protection sleeve.
Two types of slot-in batteries BTR-06S and BTR-06L are available.
Time-consuming arc calibration is no longer requried with real- time arc calibration.
SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU -T G.653), NZDS(ITU-T G.655)
8 to 16mm with coating diameter of 250 m or less. 16mm with coating diameter of 250 to 1000 m.
Optional set-plate for 8 to 16mm with coating diameter of 250 to 1000 m is available.
0.02dB with SM, 0.01dB with MM, 0.04dB with DS, 0.04dB with NZDS.
Measured by cut-back method relevant to ITU-T and IEC standards.
Typical 9sec. with standard SM fiber.
40 user programmable modes and up to 60 modes for reference(factory predetermined setting).
Intentional high splice loss of 0.1dB to 15dB(0.1dB step) can be made for an in-line fixed attenuator.
The last 2000 results to be stored in the internal memory.
X / Y, or both X and Y simultaneously.
295x for single X or Y view, or 147x for X and Y view.
Two CMOS cameras and 5.6 inch color LCD monitor.
0 to 5000m above sea level, 0 to 95%RH and -10 to 50 respectively.
Built - in tube heater with 10 heating modes and up to 20 modes for reference.
Typical 35sec. with FP-03 protection sleeve.
Applicable protection sleeve length
60mm, 40mm and a series of micro sleeves.
No.of splice/heating with battery
Typical 80 cycles with BTR-06(S)/ Typical 160 cycles with BTR-06(L).
Auto voltage selection from 100 to 240Va.c. or 10 to 15Vd.c. with ADC-11. 13.2Vd.c. with BTR-06(S / L).
USB 1.1(USB-B type)for PC communication. Video terminal RCA video jack / NTSC.
2.3kg(2.8kg including AC adapter ADC-11)
