Darley 60 ton hydraulic 8-axis cnc press brake

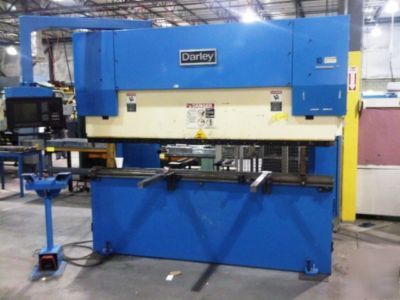

#1491 60 Ton Darley 8-Axis CNC Hydraulic Press Brake
Maximum Tonnage Capacity 60 Ton
Overall Length Of Bed & Ram 100.39"
Distance Between Housings 80.7"
Throat Depth 15.750"
Stroke Length 8.464"
Open Height 16.14"
Approach Speed 472 IPM
Bending Speed 32 IPM
Return Speed 355 IPM
Motor 7.5 HP
Approximate Weight 9,600 Lbs.

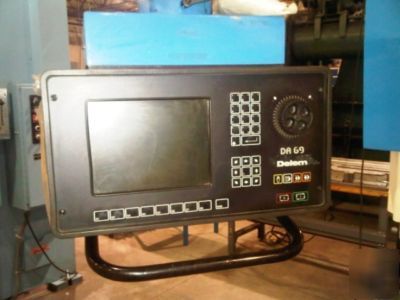

Delem DA69 3-D Color Graphic 8-Axis CNC Control
(2) Remote CNC Control Consoles

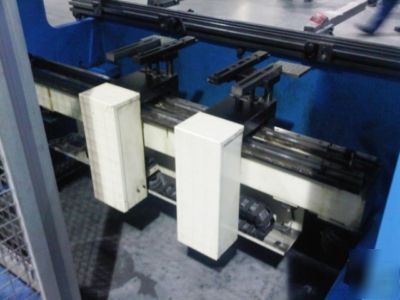

(6) Axis Back Gauge, X1,X2,R1,R2,Z1,Z2
Lower Die Holder with T-Slots Front and Back
Operator Pedestal with Two Hand/Foot Controls

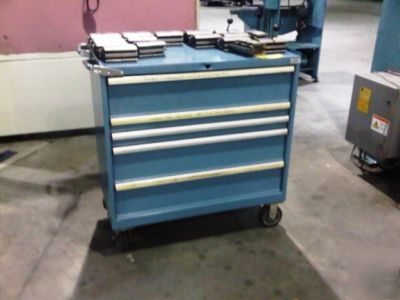

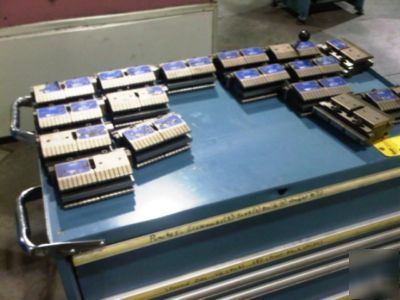

Wilson Express Tool Holder System (16) Holders
Floor Space: (L x W x H): 111.81" x 63" x 93"
