Century/lincoln K2790-1 inverter arc 230 dc tig package

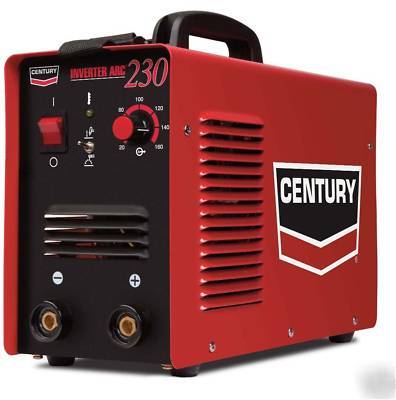

Century/Lincoln K2790-1 Inverter Arc 230 DC TIG package
http://WeldingSupplyUSA.com/images/Century_K2790-1_Inverter_Arc_230.jpgThe image http://WeldingSupplyUSA.com/images/Century_230V.jpg cannot be displayed, because it contains errors.
K2790-1 Inverter Arc 230 DC TIG and stick welder
Base unit Unit Includes: http://weldingsupplyusa.com/images/Century_K2790-1_Inverter_Arc_230_Includes_photo.jpg
* 10 ft Work cable with small dins connector and clamp
* 10 ft Electrode holder with small dins connector
* shoulder strap for portability
* 6-1/2 ft input cable with attached 50 Amp (NEMA 6-50P) plug
* One-year warranty parts and labor
TIG options included in this package:http://weldingsupplyusa.com/images/Lincoln_K1782-8_PTA-17V_TIG_Torch_generic_image.jpghttp://weldingsupplyusa.com/images/Lincoln_KP508_TIG_partsKit_For_PTA-17_Series_Torches.jpghttp:// /images/Lincoln_KH738_Shielding_Gas_Kit.jpghttp://weldingsupplyusa.com/images/K960-2_Small_Twist-Mate_TIG_Torch_Adapter.jpg
* K1782-8 PTA-17V TIG Torch (25.0 Ft.) 1-Piece Cable, 150 Amp air-cooled compact and durable TIG Torch with integral gas valve for gas control at the torch.
* KH738 601 Regulator Shielding Gas Kit with Hose
* KP508 Parts Kit For PTA-17 Series Torches
http://weldingsupplyusa.com/images/Lincoln_TIG_Torches_display.jpghttp://weldingsupplyusa.com/images/Lincoln_K1782-8_PTA-17V_TIG_Torch_generic_image.jpghttp://weldingsupplyusa.com/images/Lincoln_logo.jpg (note: torch images are for reference only and shows one of the variations of the PTA-17 series which may differ slightly from the PTA-17V that's included with this package. Please see the detailed description below of the PTA-17V that's included with this package)
http://weldingsupplyusa.com/images/K960-2_Small_Twist-Mate_TIG_Torch_Adapter.jpg
Lincoln K960-2 Small Twist-Mate Torch Adapter (with separate gas)
For connection of PTA-9V or PTA-17V torches (1-piece cable)
to power sources without gas passing through the Twist-Mate connection.
http:// /images/Lincoln_KH738_Shielding_Gas_Kit.jpg
Lincoln KH738 Shielding Gas Kit
Comes with single stage pressure regulator and 10 ft. of 3/16 hose.
http://weldingsupplyusa.com/images/Lincoln_KP508_TIG_partsKit_For_PTA-17_Series_Torches.jpghttp://weldingsupplyusa.com/images/Lincoln_logo.jpg
Lincoln KP508 TIG parts Kit For PTA-17 Series Torches
Magnum Parts Kits provide all the torch accessories you need to start welding. Parts Kits provide collets, collet bodies, a back cap, alumina nozzles and tungstens in a variety of sizes, all packaged in an easy to carry reclosable box.
Qty. Part No. Ref. No. Description in. (mm)
1 KP2036-2B1 57Y04 Back Cap Short
1 KP2030-2B1 10N22 Collet .040 (1.0)
1 KP2030-3B1 10N23 Collet 1/16 (1.6)
1 KP2030-4B1 10N24 Collet 3/32 (2.4)
1 KP2032-2B1 10N30 Collet Body .040 (1.0)
1 KP2032-3B1 10N31 Collet Body 1/16 (1.6)
1 KP2032-4B1 10N32 Collet Body 3/32 (2.4)
1 KP2016-6B1 10N50 Alumina Nozzle 1/4 (6.0)
1 KP2016-5B1 10N49 Alumina Nozzle 5/16 (8.0)
1 KP2016-4B1 10N48 Alumina Nozzle 3/8 (10.0)
1 Tungsten Electrode, 2% Thoriated .040"x7.0" (1.0 x 178mm)
1 Tungsten Electrode, 2% Thoriated 1/16"x7.0" (1.6 x 178mm
Note: DC TIG is for welding steel, not aluminum.
K1782-8 PTA-17V TIG Torch Specifications
K2790-1 Inverter Arc 230 Specifications
