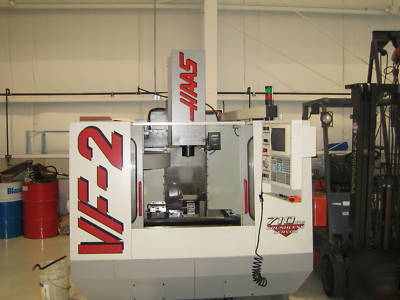

1996 haas VF2 vertical machining center

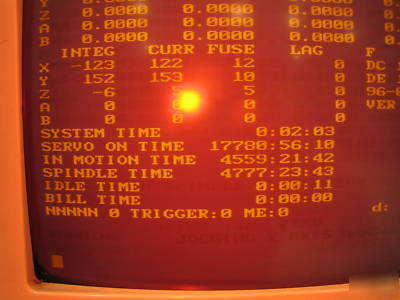

This machine is extra clean, has less than 5,000 spindle hours, and has never been used for a production application. Please contact Everett at (***) 930-9646 or Jason at (***) 790-3358 with any questions or to request further information.

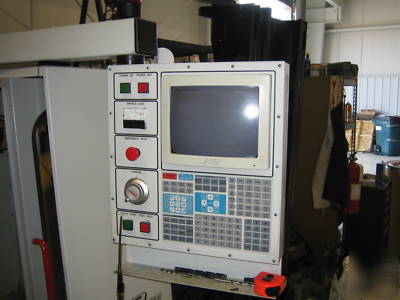

Control.......................................................................................................... Haas

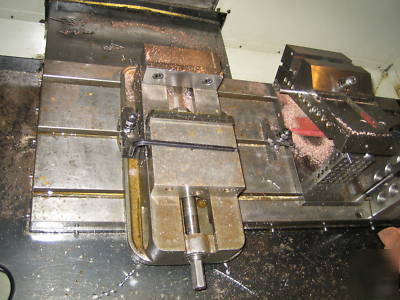

Table Size.............................................................................................. 36" x 14"
Max Table Load..................................................................................... 3,000 lbs
X-Axis Travel................................................................................................. 30"
Y-Axis Travel................................................................................................. 16"
Z-Axis Travel.................................................................................................. 20"
Spindle Nose to Table Top...................................................................... 4" 24"
Spindle Taper.............................................................................................. CT 40
Spindle Speed..................................................................................... 7,500 RPM
Spindle Motor............................................................................................. 10 HP
Rapid Traverse Rates.............................................................................. 500 IPM
Cutting Feed Rates.................................................................................. 200 IPM
Tool Changer..................................................................................... 20 Carousel
Index Time Tool to Tool........................................................................... 4.0 Sec
Index Time Chip to Chip........................................................................... 5.4 Sec
Machine Weight..................................................................................... 8,000 lbs
Machine Dimensions...................................................... 88"L x 92.8"W x 104"H
20 Station Automatic Tool Changer
