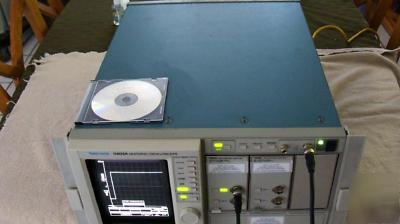

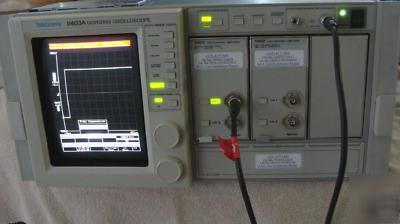

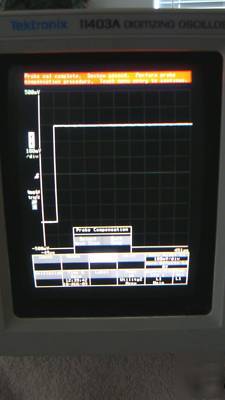

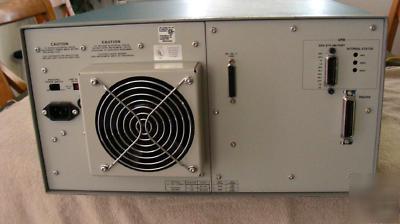

Tektronix 11403A digitizing oscilloscope w/plug ins
The Tektronix 11000-Series is a powerful set of analysis tools that feature simplification and automation of the entire measurement and analysis process. Accuracy, sensitivity. bandwidth, offset, and overdrive recovery are provided by a well-planned instrument family having plug-in versatility and performance. Multi-processor architecture allows fro simultaneous display of up to eight waveforms, and up to six dynamic, "live" measurement readouts. The automation needs of scientific and production environments are easily met by integrating these instruments into a measurement system through RS-232C or GPIB interfaces.
The 11403A Color Digitizing Oscilloscope lets you concentrate on the measurement without having to understand the internal operation of an oscilloscope.
Fully programmable and features: *** 3GHz Bandwidth *** 2GHz Trigger Bandwidth *** 10-Bit Vertical Resolution *** 14-Bits wit Averaging Acquire up to Six Channels at 1GHz Concurrently *** Deskew Nulls out Channel Timing Differences - including Probes *** Internal Calibration capability for a Vertical Error of 1% or Less *** Bandwidth and Number of Channels Are Based on Amplifiers Selected *** Operating Mode and Amplifiers Selected Determine Number of Channels that Can Be Acquired. The Digitizing Signal Analyzer (DSA) Series incorporates a dedicated digital signal processor (DSP) making it the most powerful instrument in the 11000 series. The dedicated DSP allows simultaneous real-time FFT and time-domain display, fast averaging at 180 waveforms/second, signal dejitter, and more. The Communications Signal Analyzer (CSA) series offers signal analysis and the powerful measurement capabilities required to analyze high-speed digital communications signals. Features of the CSA404 include histograms, mask testing, and a color-graded display; allowing you to perform accurate measurements such as jitter, noise, and phase.
For more information: http:// /specs/TEK%2011403A%20SPECS.PDF

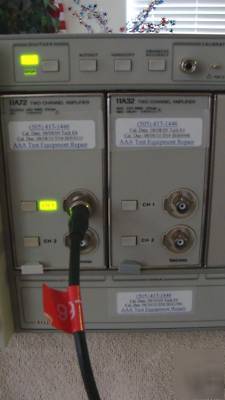

This 11A32 plug in is the highest bandwidth 11K plug-in with both 1M and 50 ohm input impedance (SN B084948).
FEATURES AND SPECS: *** DC to 400 MHz bandwidth (11402A/11403A/CSA404) *** Dual Trace *** 1 mV to 10V Calibrated Deflection Factor in 1% increments *** High-Resolution Calibrated DC Offset *** Fast Overdrive Recovery *** Switchable 50 ohm or 1 M-ohm input impedance.
The 11A72 Two-channel Plug-in Amplifier operates in the frequency range DC to 1GHz. 50 ohm Input Impedance 10 mV to 1 V/Div Calibrated Deflection Factors ?25 Division Offset (SN B093010).
FEATURES AND SPECS: *** DC to 1 GHz bandwidth (11402A/11403A) *** Dual trace *** 10 mV to 1V Calibrated Deflection Factor *** +/- 10 Div Offset *** 50 ohm input impedance.
