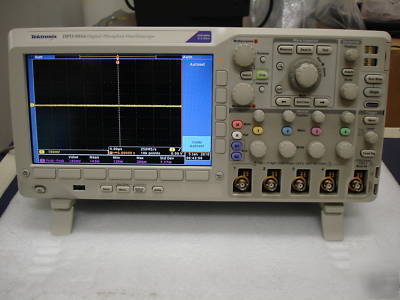

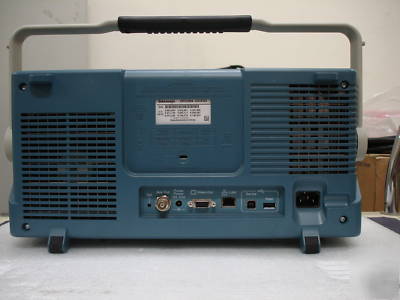

Tektronix DPO3054 500MHZ 4CH 2.5GSA/s oscilloscope
This item is tested, good condition. No probes. It is with power cord,document CD.
Up to 4 analog and 16 digital channels
Analyze analog and digital signals on a single instrument for system-level troubleshooting of complex designs.
Quickly discover glitches and infrequent events with a greater than 50,000 wfm/s waveform capture rate and intensity-graded display.
Rapidly capture signal anomalies with over 125 available trigger combinations, including setup/hold, serial packet content and parallel data.
Easily search, mark and navigate long record lengths to find all occurrences of your event.
Simplify analysis of your device with 29 automated measurements, FFT analysis, measurement statistics, and advanced waveform math.
Parallel bus triggering and analysis (MSO Series)
Quickly debug your parallel bus with automated trigger, decode and search. Capture fast transitions with timing resolution up to 121.2 ps.
Serial triggering and analysis (optional)
Quickly debug common serial buses with automated trigger, decode and search - I2C, SPI, CAN, LIN, RS-232/422/485/UART and I2S/LJ/RJ/TDM.
Achieve fast, accurate results with integrated automated power measurements.
