Miller 907339 spectrum 375 x-treme, x-case

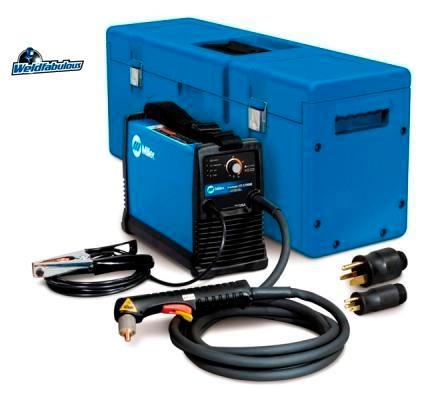

Miller 907339 Spectrum 375 X-Treme, X-Case
X-TREME Versatility - Auto-Line provides state-of-the-art flexibility. Automatically connects to 115-230 VAC, single-phase power, 50/60 Hz, without removing covers to relink the unit. No longer is there a concern if you have the correct machine for the shop or job site.
X-TREME Protection - model with
X-CASE provides ultimate protection during transport and storage. Additional space ideal for MVP plugs, consumable box, as well as gloves, eye protection, etc.
X-TREME Portability - Portable in the shop or at the job site - at 18 pounds the shoulder strap allows you to easily move from location to location.
Multi-Voltage Plug (MVP)Miller's exclusive multi-voltage plug (MVP)allows connection to 115 or 230 V receptacles without tools - choose the plug that fits the receptacle and connect it to the power cord.
LVC line voltage compensation provides peak performance power under variable conditions (power fluctuations up to +/-15%) for steady cuts and cleaner ending cuts.
LED indicators for pressure, power, cup and temperature allow faster troubleshooting, eliminating unnecessary downtime.
Ergonomic design ICE-27T torch with increased comfort, safety trigger, and improved swirl ring and cup.
Factory pre-set air - no need to adjust the air pressure! The unit automatically regulates the proper internal air pressure to the torch.
Gas/air filter/regulator inside the power source provides added protection during transportation. Standard air connection on back panel for easy gas or air hookup.
Starts without high-frequency so it will not interfere with or damage controls or computers.
Input Amperage Circuit Requirement
- 30 amp recommended or 230 volt, 15 amp (min.) individual branch circuit
* 4.5 SCFM min. (129 L/min.) at 90-120 PSI (620-827 kPa) 120 PSI MAX (828 kPa)
* 27 A at 92 VDC, 35% Duty Cycle (240 V input)
* with torch: 18 lb (8.2 kg)
