78" x 108" skoda infeeding rotary table

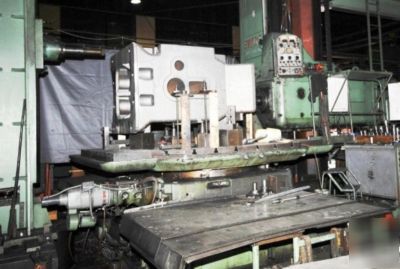

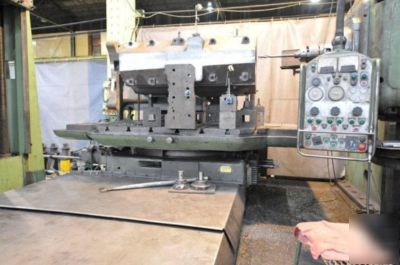

78" x 108" Skoda Infeeding Rotary Table
Rotary Table Size .................... 78.74" x 108.26"
Table Travel on Bed .................. 119.25"
Height of Table Base to Top .......... 35.03"
Length of Table Bedways .............. 190"
Longidudinal Feeds, 3-Speeds ......... 0.095 to 0.760 IPM
Rotary Feeds, 3-Speeds ............... 0.174 to 1.400 IPM
Table Load Capacity .................. 44,000 Lbs
Table Weight ......................... 19,800 Lbs
