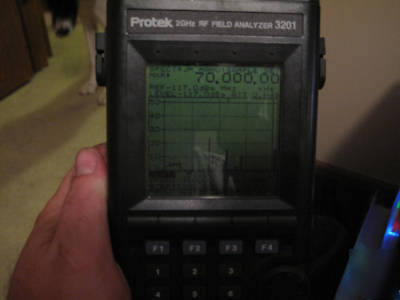

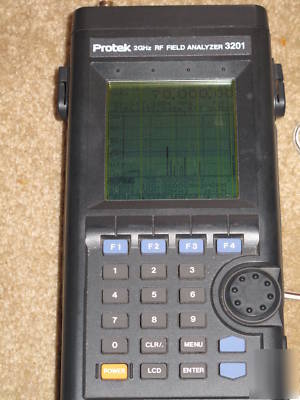

Protek rf-3201 2GHZ rf field analyzer
Hand-Held and battery operated
100kHz to 2060MHz measurement range
Built-in 2GHz frequency counter
Detects Wide band and Narrow band FM, AM and Single
Phase lock loop for precise frequency tuning
Up to 160 channels may be scanned and displayed
Audio output with built-in speaker
All functions are menu selected

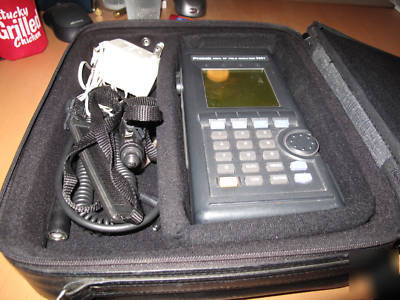

Includes software and RS-232 Cable
Hard copy printer output of spectrum and bar graph displays
Frequency Range: 100kHz to 2060MHz
Frequency Step: 5kHz to 9995kHz in multiples of 5kHz or 6.25kHz
Ref. Oscillator Accuracy: 3 PPM
Frequency Marker Accuracy: 25 PPM
Frequency Measurements: Narrow Band FM, Wide Band FM,
Maximum Input Volts: 5V RMS (+270dBm)
Attenuation: 0dB or -10dB internal; 0dB to 60dB with external
Level Measurement Range: -117dBm to -67dBm (1MHz to
Resolution: 0.5dB; Accuracy: 3dB
Level Measurement Range: -108dBm to -58dBm (10MHz to
Bandwidth: Wide band FM: Approx. 180kHz
Reception Sensitivity: 0 to 6dB V EMF with supplied antenna
Antenna Reception S/N Ratio: N-FM: 10 dB; W-FM: 12 dB

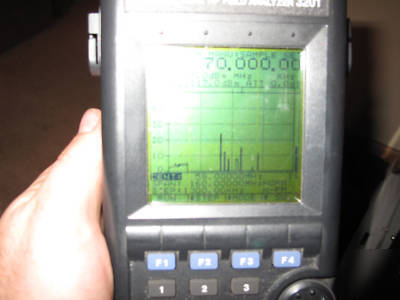

Display Modes: Spectrum, Bar graph, Frequency counter
Spectrum Display: Displays 160 channels
Bar Graph Displays: Multi channel (2, 5, 10, 20, 40, 80, 160
bar graphs per display), Single Channel and 2 Channel
Sweep Modes: Single, Normal, Free run
Spurious Signals: (internally generated) -35dBc for W-FM
-45dBc for N-FM (typical below full scale signal level)
Manual, Channel (memory scan) and Search scan
Data Memory: Stores 10 displays of up to 160 CH per display
Data Memory: Stores 10 Readings
LCD: 192 x 192 Pixels, Light green
Back Light: LED. Back light will shut off 5 seconds after the last
Interfaces: Std RS-232 interface with female 8 pin mini Din
connector. Baud Rates of 1200, 2400, 4800 or 9600 BPS are
menu selected. The software supplied is a Windows -based
program, which runs under Windows 95/98/ME/XP/2000.
Auto Power Off: 5, 10, 20 or 30 minutes after the last key
Audio Output :120mW into a 8W Speaker

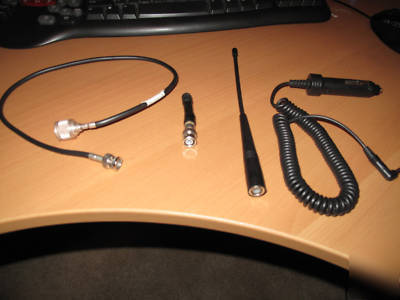

Power Requirements: (6) AA NiCd or Alkaline Batteries, 12 volt
car adapter or 11V to 16V 500 mA Max AC to DC adapter
Operating Temperature: 0 C to 40 C
Size: 9.5" H x 4.0" W x 1.8" D
