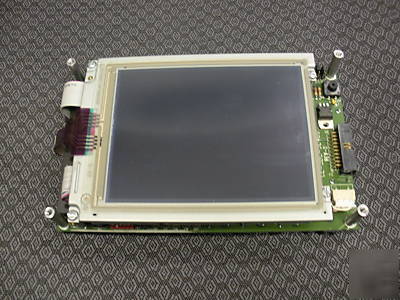

> 6.4" vga tft color lcd display touchscreen ce-sbc-SC400
6.4" vga tft color lcd display touchscreen ce-sbc-SC400
CE-SBC-SC400 embedded Microsoft Windows CE controller and operator interface features an Elan-SC-400 (486) CPU running at 100 MHz, and a 6-in. resistive touch-screen color LCD graphic display. Memory includes 16 MB DRAM and 12 MB Flash. CE-SBC also provides the user with 8-bits of parallel digital TTL output, 8-bits of parallel digital TTL in-put, six channels of 12-Bit analog to digital conversion, an enhanced bi-directional printer port (LPT-1), and a CPU I/O bus port set up to support custom hardware designs. The CE-SBC RS-485 port may alternately be used to control any number of off-the-shelf network I/O modules. The CE-DEV-CT-2 development system available from R.L.C. provides all necessary hardware and software needed develop software applications using Microsoft Visual Embedded Tools.
This item is used, but it has been hardly used. Please email with questions or for additional information.
