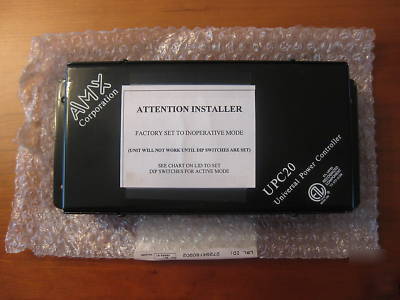

New amx UPC20 universal power / motor controller 20 amp
Universal Power / Motor Controller
The UPC20 is a dual 20-amp AC power and motor controller designed for conduit installation. The UPC20 can be configured for a wide variety of power and motor control modes. Low-voltage contact-closure or open-collector inputs allow control from simple wall panels or large systems. It is ETL listed.
* Four closure inputs, operation defined by mode
* Motor Control mode alternates between the timed operation of the two power relays
* Power Control mode allows independent control of both power relays
CONTROL PORTS: Two 2400 W power relays
* One-, two-, and three-button logic modes
* Local test switches with status LEDs
* 115, 230, and 277 VAC control capability
POWER: Self-powered when used with 110/220 VAC applications
ENCLOSURE: Metal with black matte finish, knockouts for conduit
DIMENSIONS (HxWxD): 8 1/2" (10 1/2" including flange) x 4 1/2" x 2 3/16" (220 mm (270 mm including flange) x 110 mm x 60 mm)
OPTIONS: 12 VDC power supply (required for 277 VAC applications)
