Hoffman datacom box dual hinged cabinet enclosure tp. 1

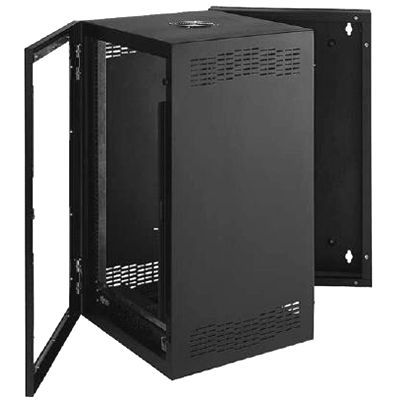

Double-Hinged Wall-Mount Cabinet
The ACCESSPLUS Type 1 Double-Hinged DataCom Wall-Mount Cabinet is perfect for applications where security and accessibility are required and floor space is at a premium. This versatile cabinet mounts to a wall or can be pole-mounted with optional pole-mounting kit. Designed to hold multiple pieces of voice/data equipment comfortably, it can be mounted to be left- or right-hinged and comes completely assembled and ready to mount.
This design allows you to access the front or back of your equipment and still have the spacesaving convenience of wall mount cabinets.
Double-hinged for easy equipment access
Solid front door with keylock
Front access to center body hinging and back section latches
Latch-free sides permit side of cabinet to be installed tightly into a corner
Vented sides improve heat dissipation
Knockouts on enclosure top and bottom for optional 4-in. cooling fan or filter kit when increased heat dissipation is needed
Available with knockouts or gland plates on top and bottom of enclosure for cable entry
This knockout model has center-section-to-rear-section adjustable stop to keep center section from opening too far and hitting adjacent equipment and to provide a solid position when mounting cables on patch panels
Gland-plate models allow installing prewired patch panels into enclosure without removing cables
Door and center sections can be removed for easy, one-person mounting to wall
Hidden hinges with removable, retained hinge pins provide sleek appearance and improved security
Rack angles movable front-to-back in center section for increased equipment mounting versatility
Self-grounding rack angles meet grounding requirements
Cable tie-down slots throughout cabinet facilitate cable system maintenance
Raised pads on back of enclosure provide mounting means for accessories
Accommodates wall mounting or pole mounting (kit needed)
Quality welded 16 and 14 gauge steel construction
Rack angles made of self-grounding plated steel and tapped with 10-32 threads
Phosphatized steel coated with RAL 9005 black textured, low-gloss polyester powder paint.
We do have some racks available. Call for pricing. (***) 645-9240 ask for Jonathan.
