Dickson FH125 temperature & humidity lcd graphing log

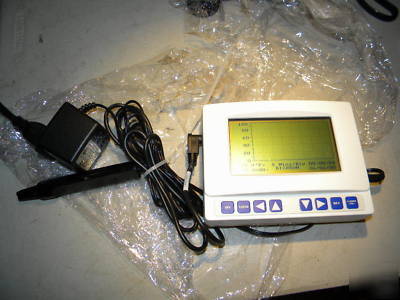

* Dickson FH125 Temperature & Humidity LCD Graphing Logger

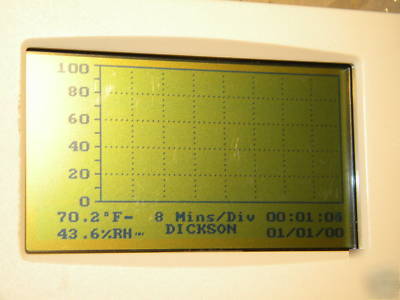

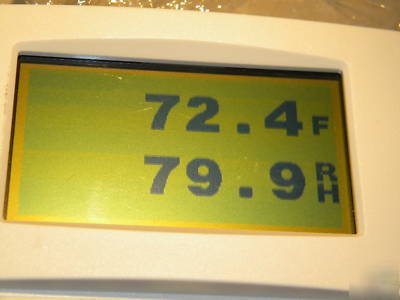

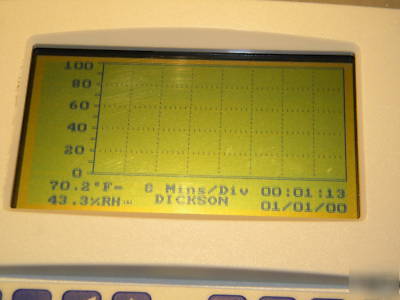

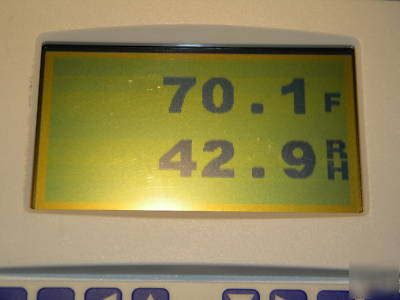

* Dickson s new Paperless Recorder lets you view detailed temperature and humidity data on its large screen and allows for optional PC downloads. Its large 4.5 x 2.5 display shows you current temperature and humidity readings and displays a graph of data ranging from 1 hour to 32 days. No paper charts or running back to your PC to see data, this recorder shows you everything at the push of a button.
* User Selectable Ranges:FH125: 0 to +100 F, -40 to +185 F, 0 to +120 F, -20 to +40 C, -40 to +85 C, -20 to +50 C
* Temperature Accuracy: 1.8 F
* Humidity Range: 0 to 95%RH
* Humidity Accuracy: 2%RH at 73 F
* Sample Points: 15,872 per channel
* Sample Rate: Sampling rates vary depending upon recording time selected
* Recording Time Sampling Rate
* 64 minutes ............... 20 seconds
* 8 hours .................... 30 seconds
* 24 hours .................. 30 seconds
* 8 days ...................... 60 seconds
* 16 days .................... 60 seconds
* 32 days .................. 150 seconds
* Recording Times: User Selectable: 64 minutes, 8 hours, 24 hours, 8 days, 16 days or 32 days
* Display: LCD: 240 x 128 pixels; Graphical Display
* Power: 120V AC with 9V battery backup (UK & European voltage models available)
* Remote Probe Length: 6 cable (FH125)
* Dimensions: 7.0 x 5.0 x 2.0
* Manual is available on the Dickson web site here
