Berkel combination 12" slicer and scale model 909AS

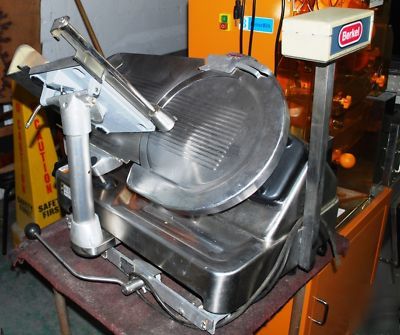

Berkel Combination 12" Gravity Feed Slicer and Scale
Combination Slicer and Scale
Built-in, digital scale lets you slice/weigh to order; pound, ounce or gram versions available
Side-mounted weight system uses an easy-to-read, tower, vacuum florescent display
2-speed, 1/2 HP, totally enclosed and permanently lubricated knife motor
Furnished in 115/60/1, 5.5/4.5 amp, AC, ETL listed
Low 12/5 VDC circuitry for added operator protection
Finish is stainless steel and sanitary burnished aluminum; unit disassembles quickly without tools for easy cleaning
Nominal 12-1/2 (318 mm) diameter, hollow ground, hardened and polished forged stainless steel knife
The carriage handles food up to 11 (280 mm) wide, by 6 (152 mm) high or 8 (203 mm) diameter
Rear-mounted, stainless steel meat pusher extends over the length of the product table
Precise slice adjustment to thickness of 27/32 (21 mm)
Ergonomic style handle for ease of use
Built-in, top-mounted, two stone knife sharpener with single lever, dual-action system
Permanent, tapered knife ring guard covers non-slicing portion of knife even when the sharpener and center plate are removed
Center plate interlock prevents the slicer from running when center plate is removed
No-Volt release prevents activation of the slicer in the event of power interruption; operator must restart slicer
Gauge plate interlock prevents removal of the product table until it is in the full forward or home position and the gauge plate is fully closed; once table is removed, gauge plate cannot be reopened
Built-in timer automatically shuts the slicer off after15 seconds of non-use
Q-P-Q nickel plated transport slide rod with reservoir wick for reduced wear
On/off, 3-position, moisture protected switch with power light
Attached 6-foot, flexible, 3-wire cord and plug for grounded receptacleClick Here to Download Product Datasheet
