> New 40HZ to 200K lcrz esr meter
New 40HZ to 200K lcrz esr meter

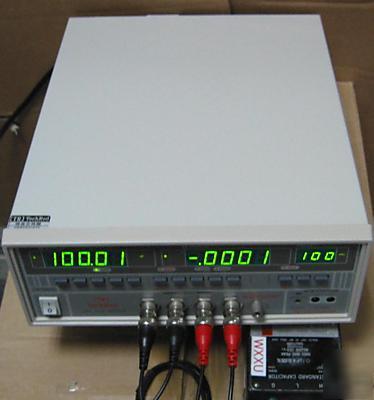

Description : 40HZ to 200K LCZ Meter
Unit is never use ,new & all function work .
Inductance (L) measurment with four wire technique
Capacitance ( C ) measurment .
Display parameter : Q,D,R, Z & phase angle
Impedance (Z) & phase angle measurment for inductance & capacitance.
Quality Factor (Q) measurment .
Dissipation Factor(D) measurment .
ESR (Equivalent Series Resistance)measurment can test the capacitor ERS value of frequency up to 200KHZ in series mode .
This can test the Quality of the capacitor .e.g. lower ESR cap. , 105 degree cap & audio cap.
For perfect cap. ,the ESR value is zero or very small.
For poor quality or aging cap, the ESR value is so high.

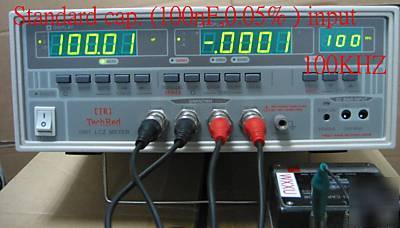

Photo show the standard capacitor (100nf ,0.05%) at testing frequency 100KHZ.
Test Frequency: 40HZ to 200KHZ ,30 points for selection
40,50,60,100,120,200,400,800HZ,1K,2K,5K,10K,
15K,15.7K,16K,20K,22.2K,25K,30K,40K,50K,60K,66.6K,75K,80KHZ,
Display: 4 1/2 digits for LCZ ,Q & D measurement
Quality Factor (Q) : 0.0000 to 19999
Dissipation Factor(D) : 0.0000 to 19999
Test signal level : 20mv to 1 Vrms, step 20mv
Testing mode : Series or parallel
Zero cal : open for cap . & short for inductance & resistance.
DC bias Voltage : external ,up to 35V.
Size & weight: app. 270(w) x 110(H) X 340(D) mm, 4.5 Kg net, Packing 5.5kg
Come with user manual (English & Chinese) power cord 1 pc,
Four wire test box (Test Fixture) 1 set
0.1 % 0.25W, 100 K Resistor 2 pc, 0.1 % 0.25W, 1M Resistor 2 pc,
All the product are tested by our lab Tech .Ensure unit working properly.
Warranty repair shall not apply to below :
1. Any failure or damage cause by improper use or operation . like improper connection , higher voltage or power input (signal input or AC source input ) .
