14" x 28" chevalier model fsg-1428AD surface grinder

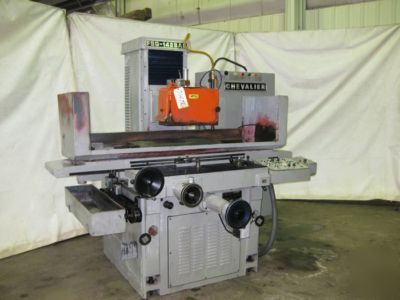

14" X 28" CHEVALIER MODEL FSG-1428AD PRECISION HYDRAULIC SURFACE GRINDER
Max. distance from table surface spindle centerline:
Standard magnetic chuck size 11 3/4"x27 9/16"
Longitudinal movement of table:
Longitudinal travel, hydraulic 28 3/4"
Table speed, infinitely-variable 16-82 FPM
Rapid travel, approx. 12.5 FPM
Automatic traverse increment 1/8"-2"
Max. manual transverse travel 12 1/2"

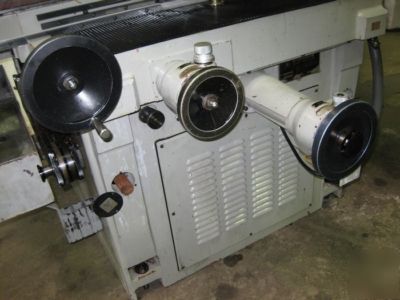

Handwheel per revolution 0.25"
Handwheel per graduation 0.0025"
Automatic infeed (for AD model only) 0.00005-0.002"
Handwheel per revolution 0.05"
Handwheel per graduation 0.0005"
Stock 1 23 SERIAL NUMBER 4 NEW 5 2 GENERAL SPECIFICATIONS: (cont.) Space: Total Space Required 112" x 69" x 79" Weight5,950 LBS Rated power, approx. 7.4 kW

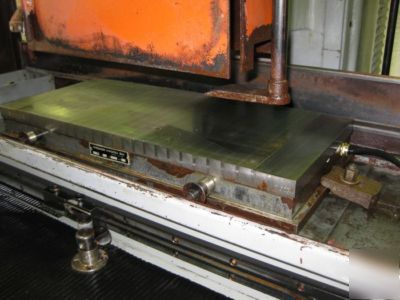

12" x 28" Electromagnetic chuck
Automatic grinding cycle with auto down feed
