K.o. lee B2060B tool & cutter grinder, ball track tbl,

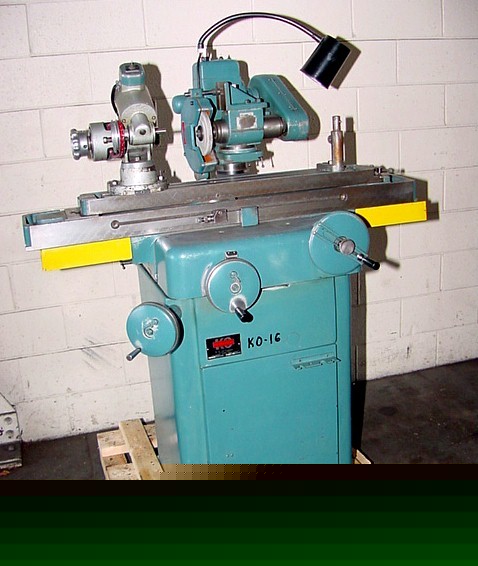

K.O. Lee B2060B TOOL & CUTTER GRINDER, BALL TRACK Tbl,
K.O. Lee B2060B TOOL & CUTTER GRINDER, BALL TRACK TABLE, PWR. WKHD.
** BALL TRACK TABLE FOR LOW EFFORT TABLE MOVEMENT **
MODEL: B2060B S/N: 19197-KG NEW: 1977
SWING OVER TABLE ............................. 8-1/4"
DISTANCE BETWEEN TAILSTOCKS ..................... 32"
TABLE WORKING SURFACE ............... 5-1/4" X 37-1/4
SUB TABLE .................................. 8" X 48"
LONGITUDINAL TABLE TRAVERSE ..................... 20"
TABLE FEED PER REV. OF HANDWHEEL:
FAST ................................. 2-13/16"
SLOW .................................... 9/16"
CROSS FEED .................................. 7 -1/4"
FEED PER REV. OF HANDWHEEL (.001" GRAD.).... 0.100"
VERTICAL MOVEMENT OF COLUMN ...................... 7"
FEED PER REV. OF HANDWHEEL (.001" GRAD.) ... 0.050"
COLUMN DIAMETER .................................. 4"
MINIMUM/MAXIMUM DISTANCE CENTERLINE OF WHEEL
SHAFT TO TABLE ................... 3-3/4" / 10-3/4"
MAXIMUM DISTANCE FROM COLUMN TO OUTSIDE OF STRAIGHT
WHEEL; DOVETAIL SLIDE NOT EXTENDED, SPINDLE 90 DEG.
TO TABLE ................................... 3-3/4"
WHEEL; DOVETAIL SLIDE EXTENDED, SPINDLE 90 DEGREES
TO TABLE ................................. 9-15/16"
TABLE SWIVELS (CALIBRATION: 3" PER FT., 15 DEG. EITHER
SIDE OF CENTER) ........................ 225 DEGREE
WHEEL HEAD SWIVEL ........................ 360 DEGREE
MAXIMUM I.D. DEPTH, HOLE SIZE 9/32" TO 2" .... 1-1/4"
MAX. CROSS FEED SURFACE GRINDING W/5" WHEEL ..2- 3/4"
(HIGH SPEED WHEELHEAD) ......... 3450 TO 18,400 RPM
APPROXIMATE MACHINE WEIGHT ................ 1,180 LBS
BALL TRACK TABLE FOR EASY, LOW EFFORT TABLE MOVEMENT
K.O. LEE B955 WHEELHEAD (1/2 H.P./3/60/230-460 VOLTS)
- PERMITS USING 1/4" TO 6" DIAMETER WHEELS
DRAW BAR ALLOWING USE OF 5C COLLETS
** ORIGINAL PAINT!; EXCEPTIONAL CONDITION & APPEARANCE **
