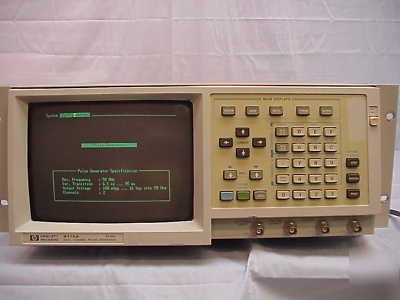

Hp 8115A dual channel pulse generator 50MHZ tested
Delivers pulse trains with up to 32 V peak-to-peak into high impedance and variable
transitions from 6.5 ns up to 95 ms
Suitable to operate as a standalone instrument or in an ATE system
Wide temperature range, 0 C to 55 , ideal for ATE systems
High accuracy is achieved in the limited temperature range 20 C to 30
Useful for bench-top applications which require higher accuracy
High and low level channel is independently programmable
Output voltages can also be programmed as amplitude and offset
Simulates data/clock signals
Comes with Rack mount ears and power cord.
