Zeroplus lap-c 16064 16-channel 100MHZ logic analyzer

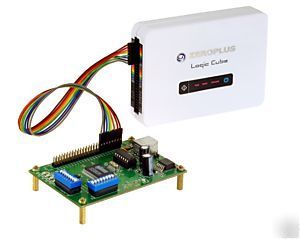

Zeroplus LAP-C 16064 16-channel 100MHz Logic Analyzer
Depth(Per Channel) 64Kbits (Max 16Mbits for compression)
The Decoding of Protocol Analyzer IIC-STEP 1
PS: According to the Protocol Analyzer IIC Analysis Module of Zeroplus Logic Analyzer, users can set the Number of Bit for Address and Data as their requirements in the Custom Setting dialog box and the setting range is 1 ~ 28 Bits.
When the setting is completed, the packet data of the Protocol Analyzer IIC will be displayed on the screen.
7-SEGMENT LED IIC SPI UART(RS-232C/422/485)
1-WIRE 3-WIRE AC97 ARITHMETIC LOGIC CAN 2.0B CCIR656 DIGITAL LOGIC DMX512 DSA FLEXRAY 2.1A HDQ IIS JK FLIP-FLOP JTAG 2.0 LCD 12864 LCD1602 LIN 2.1 MANCHESTER MICROWIRE MII MILLER MOD NEC PD6122 PCM PECI PM 1.1 PS/2 PSB S/PDIF SIGNIA 6210 SLE4442 SM2.0 SSI ST ST7669 USB 1.1 LAP-PCI-M UPDOWNCOUNTER MODIFIED MILLER ISO7816 UART
