Xantrex XDC60-200 power supply, 60V, 200A, 12000W

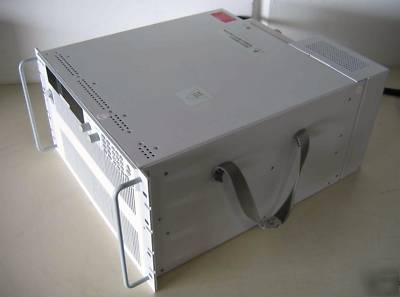

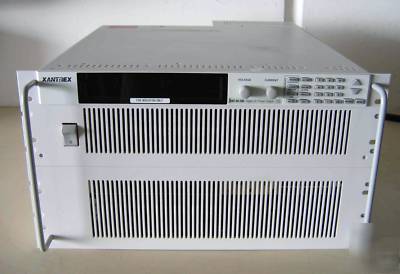

XANTREX XDC60-200 Power Supply, 60V, 200A, 12,000 Watts
The Xantrex XDC60-200 Power Supply represents the forefront in programmable DC power supply technology. The XDC60-200 features voltage up to 60V, current up to 200A and power up to 12kW, and is ideal for ATE, production test, burn-in, bulk power and OEM applications.
With an embedded controller, the XDC Series has a unique menu-driven auto sequencing capability. This powerful feature allows for complex test sequences to be entered and saved via the front panel without the need for external computers or software. Tests unique to a user s application are now possible with the XDC Series.
The Xantrex XDC60-200 Power Supply offers up to ten different test programs, each with up to 99 voltage level steps varying from milliseconds to days. Programs can be executed by a manual or external trigger, or via a computer interface; a technician can single step through a sequence, run n times or run continuously when triggered from the front panel or remotely. This stand-alone capability can be used for constructing simple voltage ramps, battery charging and simulation of battery voltage at engine start-up, component testing, and MIL 704E testing. Additionally, up to ten configurations of differing protection and output set points may be stored, recalled at any time or set for default at start-up.
Specifications of the Xantrex XDC60-200 include:
* Voltage (0.01% of Vmax): 6mV
* Current (0.1% of Imax): 200mA
* Voltage (0.05% of Vmax + 5 mV): 35mV
* mVCurrent (0.2% of Imax + 40 mA): 440mA
* Voltage (0.15% of Vmax): 90mV
* Current (.5% of Imax): 1mA
* Voltage (0.04% of Vmax): 24mV
* Current (0.6% of Imax): 1200mA
* Voltage (0.04% of Vmax): 12mV
* Current (0.6% of Imax): 120mA
* Voltage (0.04% of Vmax/ C): 24mV
* Current (0.06% of Imax/ C): 120mA
* (5% to 103% of Vmax): 0-61.8V
Standard Features of the Xantrex XDC60-200 Power Supply include:

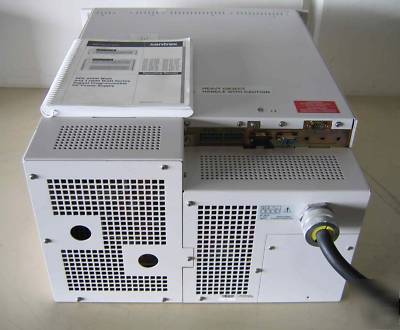

* 3 342-500 VAC Input ******(THIS UNIT HAS 3 342-500 VAC Input)*******
* Power Factor Correction (PFC)
* Zero voltage soft switching
* Ten store/recall locations
* 99-step, menu-driven auto sequencing
* Advanced internal programming
* Nine self-protection mechanisms

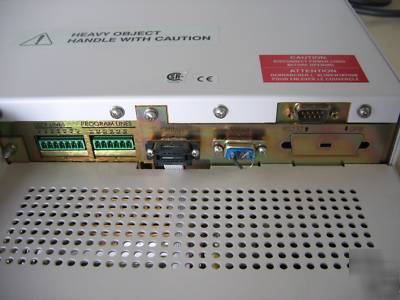

* Isolated analog programming
* RS-232 interface (optional, and not included on this unit)
* LabView drivers (available from the manufacturer)

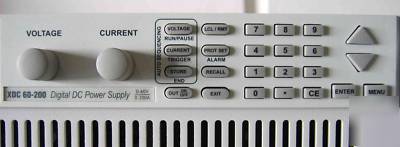

* Bright vacuum fluorescent display
* Front panel software-based calibration
* Remote sense with 5 V line loss compensation
* UL, CSA, CE approvals; FCC compliant
This Xantrex XDC60-200 is available for RENTAL - Call (***) 806-6600 to RENT this item
