199Z starrett master precision level 15"/380MM

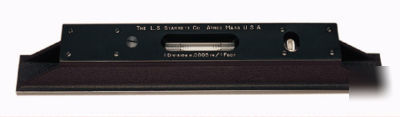

Master Precision Level No. 199Z
This Master Precision Level is especially designed to set up, check and test machinery of all types. The efficiency of modern, high speed machinery
depends to a large degree upon the levelness of the machine set-up. With this Master Level you can tell at a glance the exact variation of the levelness
of the machinery and make the necessary adjustments.
Ground and graduated main vial of 10-second accuracy; one division equals 1/2 thousandth (0.0005) of an inch per foot, or 0.04mm per meter
Main vials have seven graduations on each side of the bubble
Auxiliary level vial shows lateral position and assists in horizontal setting
Level vials are positioned so breakage is reduced to a minimum
Fool-proof adjustment to avoid tampering, once set
Special alloy iron used to obtain freedom from thermal effects
Castings are thoroughly seasoned and machined
Nonmachined surfaces have a black wrinkle finish
