Angle plates stepped matched pair toolmaker machinist

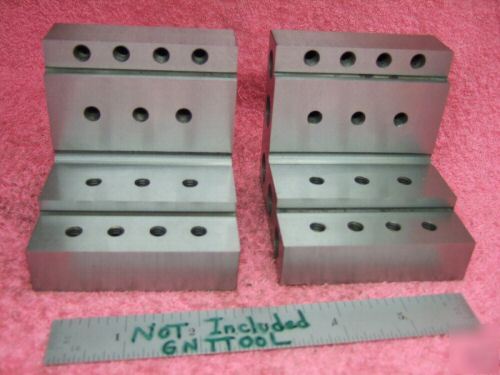

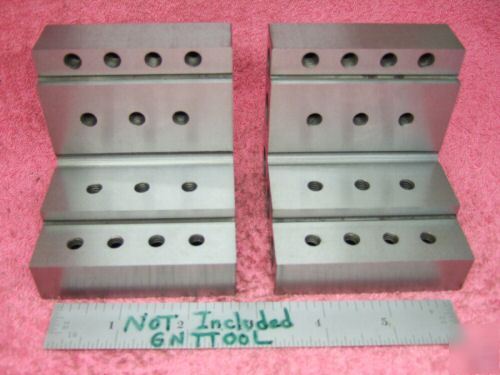

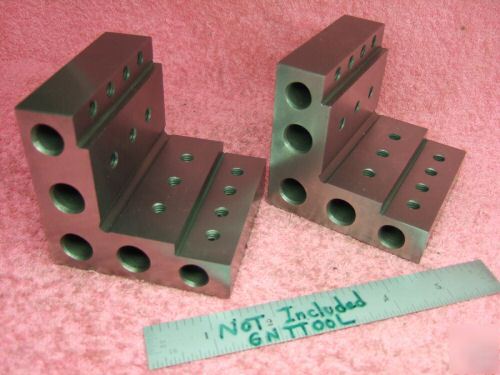

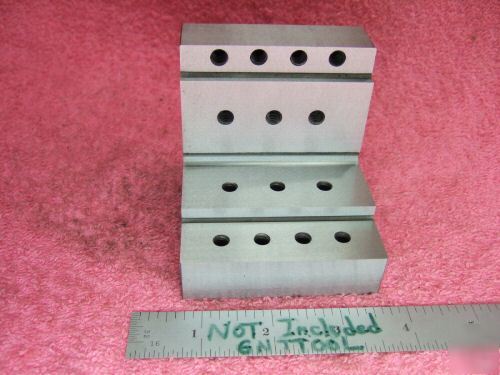

PRECISION GROUND MATCHED PAIR OF STEPPED ANGLE PLATES FRESHLY GROUND USING HERMANN SCHMIDT SQUARING BLOCK AND BALL-WAY SURFACE GRINDER . STEPPED ANGLE PLATES HAVE (14 TOTAL) 1/4" X 20 TAPPED HOLES AS SHOWN. FRESHLY GOUND USING HERMANN SCHMIDT SQUARING BLOCK AND A BALL-WAY SURFACE GRINDER WOW THEY ARE NICE!!!!! ANGLE PLATES ARE AS SHOWN IN MINT PRECISION GROUND CONDITION. MACHINIST OR TOOLMAKER TYPICALLY USED FOR GRINDING,LIGHT MILL WORK OR EVEN INSPECTION THEY ARE PRECISION GROUND ANGLE PLATES. SEE PICS. EXTREMELY NICE WELL MADE TOOLMAKER TOOLS. WE HAVE MANY TOOLS LISTED BY THIS AMERICAN TOOLMAKER INCLUDING V BLOCKS ,SINE SLIDE DRESSER,SLIDE DRESSER AND MUCH MORE! BE SURE TO CHECK OUR STORE FOR MANY MORE NICE HARD TO FIND TOOLMAKER ITEMS. SEE PICS AND ASK ANY QUESTIONS.

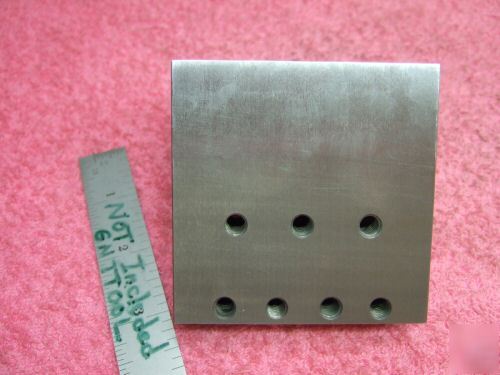

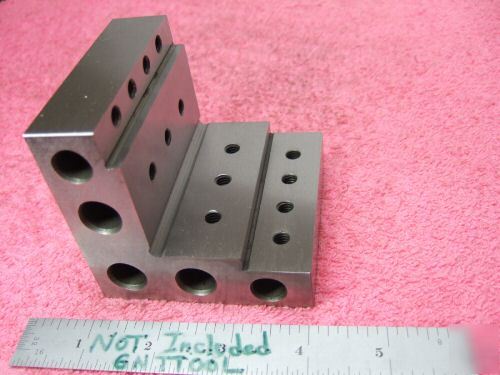

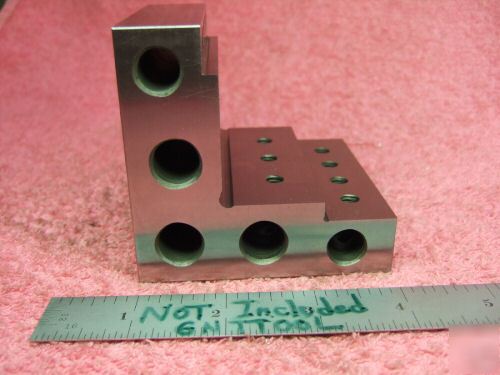

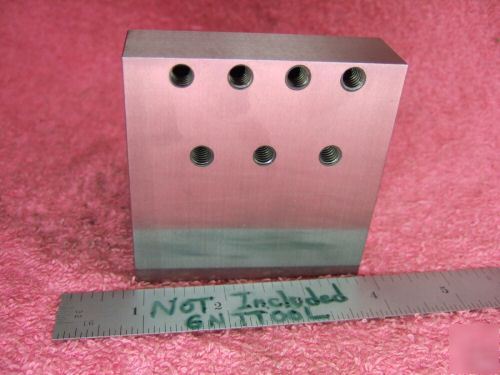

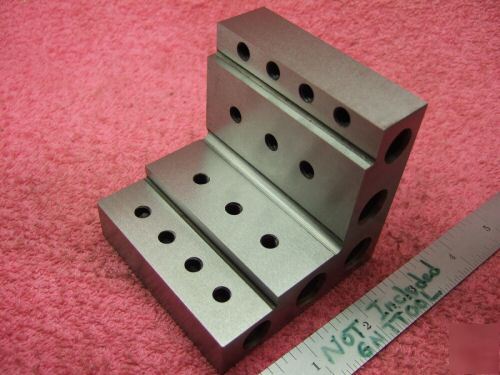

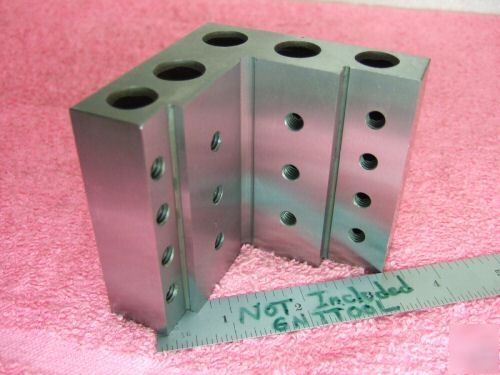

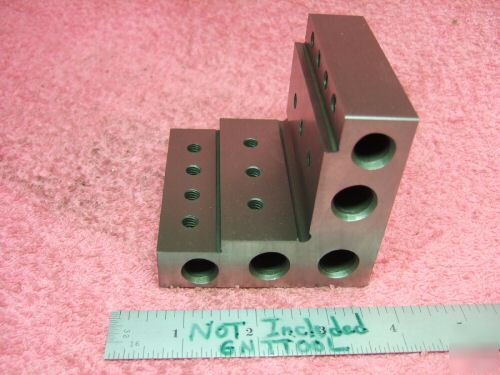

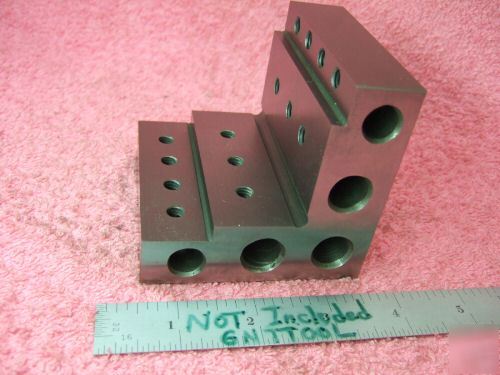

ANGLE PLATE MEASURES 2.977" WIDE X 3.102" TALL WITH SECOND LEG THAT IS 2.951" LONG . BLOCK HAS (14) TAPPED HOLES 1/4" X 20 IN FACES AS SHOWN AND (2) STEPS THAT MEASURE .165" DEEP X .492" FROM TOP DOWN, .235" DEEP X .879" FROM TOP DOWN TO STEP. ANGLE PLATES ALSO HAVE (5) HOLES THROUGH THE WIDTH THAT ARE (3) 33/64" .515" AND (2) 7/16" .44" DIAMETER TO BOLT DOWN AS NEEDED, AS SHOWN IN PICS. SUPER NICE CLEAN READY TO USE PLATES MADE BY AMERICAN TOOLMAKERS!!!!! PLATES ARE IN NICE READY TO USE CONDITION AS SHOWN. I HAVE MANY TOOLS TO LIST FROM THIS XCELLENT XCELLENT TOOLMAKER,CHECK BACK OFTEN AND SEE OUR STORE!
