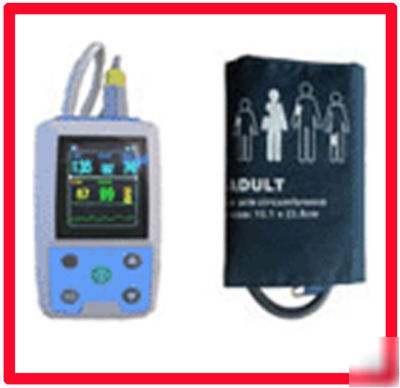

24 hours ambulatory blood pressure monitor holter mapa
Software: CardioScape Ambulatory BP Monitor
l Windows 98/2000/XP/VISTA platform, powerful functions and easy operation
l Oscillometer with step deflation measurement
l BP monitoring setting function
l BP recorder automatic zero setting function
l BP pulse data recording and display functions
l BP data edit and statistic functions
l BP pulse trends display and print function
l Automatic 24h BP measurement
l Small portable and good-shaped
l Independent measurement via green button on BP monitor
l Results directly shown on color LCD of BP monitor
l Download and analysis software: CardioScape ABP Report Editor, compatible with Oxford Report Editor
l Method of measurement: oscillometer with step deflation
l Blood Pressure Range: 25-280 mmHg(max inflate 300mmHg)
l Heart Rate Range: 40-200 bpm
l Temperature:10 (50F)to 50 (122F)
l Power: 2 "AA" alkaline batteries or high capacity rechargeable batteries(NiMH)
l Recording duration: Up to 52 hours, 250 measurements
l Sampling periods: Up to 3 distinct time periods with auto retry
l Safety Systems: Maximum inflation pressure limite to 300 mmHg. Auto safety release valve for power failure.
Maximum BP measurement time limited to less than 180 seconds
l Weight: 350g(whit batteries)
l Storage Conditions: -20 to 70 , 15%-95% RH non-condensing
l Date transmission: RS232 interface
Neonatal cuff 6-11 arm circumference
Pediaric cuff 10-19 arm circumference
Child cuff 18-26 arm circumference
Adult cuff 25-35 arm circumference
Adult large cuff 33-47 arm circumference
Adult leg cuff 46-66 arm circumference
l Custom clearance: Client is responsible for the custom clearance and custom duty if any, we will not be responsible
for the custom clearance and duty.
