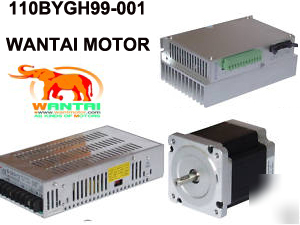

> nema 42 stepper motor of 1586OZ-in+1 driver 8A+1 power
nema 42 stepper motor of 1586OZ-in+1 driver 8A+1 power
1 PC Nema 42 Stepper Motor With 1586 OZ-In Holding Torque,
1 PC Stepper Motor Driver, with 80VDC,7A, 300 Microstep,
2, Stepper Motor Driver 8A, 480 Microstep
Two group 32 channels constant angel and constant torque subdivision. Highest subdivision: 480
The motor phase current is reduced to set current value 100 ms after receiving the last pulse edge
Bipolar constant current chopping circuit
Driven current is adjustable continuously from 0.5A/phase to 8A/phase (0.4A/phase to 6.4A/phase)
Single power supply, voltage arrange from DC24/V to 80V (DC40V to130V)
Highest response frequency: 200Kpps
Overvoltage protection, overheat protection, overcurrent protection
