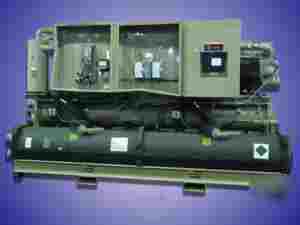

Trane helical rotary chiller
ternet SalesInventory Item #: 1127 Guaranteed to work upon arrival. Photo: Actual Item
The items I sell are all items from companies / business that have been liquidated.
Don't hesitate to contact me! I usually answer e-mails the same day. Thanks!
Used Items: If possible I will test items to power on. However I won't know the features available on an item. Testing additional features isn't a problem. Just let me know what you need.
This unit was delivered to job site. The water heaters were delivered and slid into the doors. That's it. Never installed. We do have the doors. Trane does have a warrenty available for this unit.
RTWD-140F-2A01-A1A1-AA1A-1A1X-1BOA-1000-0000-000A-2001-0BD0
Digits 01, 02, 03, 04 - Chiller Model - RTWD = Water Cooled Chiller Series R
Digit 05, 06, 07 - Unit Nominal Tonnage - 140 = 140 Nominal Tons
Digit 08 - Unit Voltage F= 460/60/3
Digit 09 - Manufacturing Plant - 2 = Pueblo, USA
Digit 10, 11 - Design Sequence ** = First Design, etc. increment when parts are affected for service purposes
Digits 12 - Unit Type - 1 = Standard Efficiency/Performance
Digit 13 - Agency Listing - A = UL Listed to US and Canadian Safety Standards
Digit 14 - Pressure Vessel Code - 1 = ASME Pressure Vessel Code
Digit 15 - Unit Application - A = Std Cond <95/35Entering Wtr Temp
Digit 16 - Pressure Relief Valve - 1 = Single Relief Valve
Digit 17 - Water Connection Type - A = Grooved Pipe Connection
Digit 18 - Evaporator Tubes - A = Internal and External Enhanced EvapTube
Digit 19 - Number of Evap Passes - 1 = 2 Pass Evaporator
Digit 20 - Evap Water Side Pressure - A = 150 psi/10.5 Bar Evap Water Pressure
Digit 21 - Evaporator Application - 1 = Standard Cooling 40 to 65/4.4 to 18.3
Digit 22 - Condenser Tubes - A = Enhanced Fin - Copper
Digit 23 - Cond Water Side Pressure - 1 = 150 psi/10.5 Bar Cond Water Pressure
Digit 24 - Compressor Starter Type - X = Across the Line Starter
Digit 25 - Incoming Power Line Connection - 1 = Single Point Power Connection
Digit 26 - Power Line Connection Type - B = Mech Disconnect Switch
Digit 27 - Under/Over Voltage Protection - 0 = No Under/Over Voltage Protection
Digit 28 - Unit Operator Interface - A = Dyna-View/English
Digit 29 - Remote Interface (Digital Comm) - 1 = LonTalk/Tracer Summit Interface
Digit 30 - Ext Water & Curr Limit Setpoint - 0 = No Ext Water & Curr Limit Setpoint
Digit 32 - Programmable Relays - 0 = No Programmable Relays
Digit 33 - Cond Refrigerant Pressure Output Option - 0 = No Condenser Refrigerant Output
Digits 34 - Outdoor Air Temp Sensor - 0 = No Outdoor Air Temp Sensor
Digit 35 - Cond Leaving Hot Water Temp Control - 0 = No Cond Leaving Hot Water Temp Control
Digit 36 - Power Meter - 0 = No Power Meter
Digit 37 - Motor Current Analog Output (%RLA) - 0 = No Motor Current Analog Output
Digit 40 - Installation Accessories - A = Elastomeric Isolators
Digit 41 - Flow Switch- 2 = 150 psi NEMA 4 Flow Switch; Qty 1
Digit 42 - 2-Way Water Regulating Valve - 0 = No 2-Way Water Regulating Valve
Digit 44 - Insulation - 1 = Factory Insulation
Digit 45 - Factory Charge - 0 = Full Factory Refrigerant Charge (134a)
Digit 46 - Base Rail Forklifting - B = Base Rail Forklifting
Digit 47 - Label and Literature Language - D = English
