Iet sts-1600 semiconductor and component tester
IET STS-1600 Semiconductor and Component Tester
A powerful test and troubleshooting tool. It is integrated with a built in LCD display so that it serves as a very flexible laboratory or inspection tool in addition to performing various component testing functions.
In the basic mode, it can display the voltage-current signature characteristics of a test component and automatically compare it with a reference component. The LCD display is used to represent a graph of (X), the voltage versus (Y), the current.
Using the optional (not included) STS-1510 Component Comparator, the system allows the comparison of any pin of a stand-alone integrated circuit or one that is part of a printed circuit board. This provides a method for testing and troubleshooting suspect or defective printed circuit boards without having to perform involved examination of the circuits.
Frequency: 50/60 Hz, 400 Hz, or 2 KHz,
Level: LOW - 10 V peak, 135 mA rms max.
MED-LOW - 15 V peak, 9 mA rms max.
MED-HIGH - 20 V peak, 0.6 mA rms max.
HIGH - 60 V peak, 0.6 mA rms max.
Waveform: Pos. and/or Neg. pulses or DC level
Duty Cycle: 0% (DC) to 50% (SQ Wave) for Pos. and/or Neg. pulses.

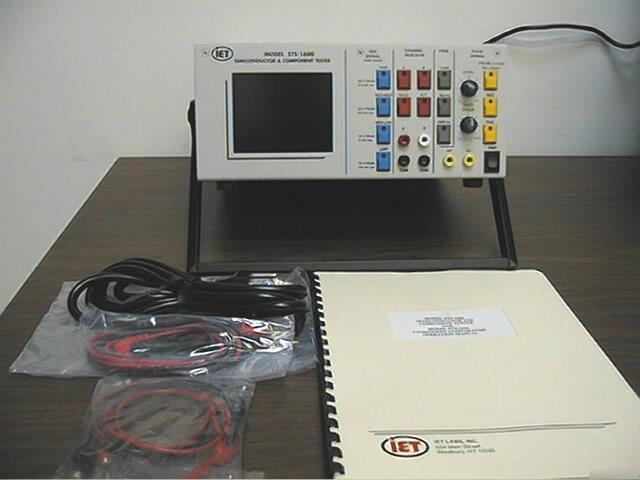

As shown in the pictures accessories and manual are included, Picture shows the sample characteristics of a capacitor and a diode. This unit is like new but the original box is not available. For more information, refer to IET website: http:// /home.htm#alphabetical.
