High speed parallel port cnc breakout board made in usa

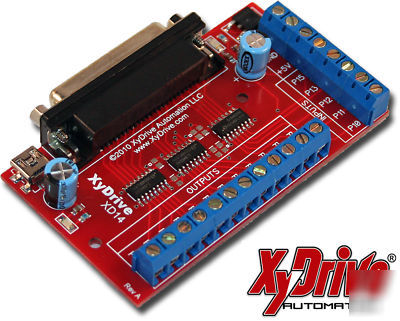

XyDrive XD14 ULTRA HIGH SPEED Parallel Port Breakout Board
* Made In the USA using only Premium Quality Components
* Ultra High Speed Operation up to 1MHz with Almost No Signal Distortion
* Uses Digital Isolation Technology Far Superior to Optical Isolation
* Mini-USB +5VDC Power for PC Side Logic
* Screw Terminal Side Input Voltage Range 9-32V Enables Running the Board From the Same Supply as the Motor Driver Board
* Integrated 5V Regulator With Screw Terminal Output Provides 5V at up to 400mA for Powering Other Boards and/or Limit/Homing Switches
The XyDrive XD14 high speed parallel port breakout board was designed to interface CNC equipment such as stepper motor controls with a PC. The XD14 uses new digital isolation technology which provides for signal transfer rates of up to 1MHz with very little signal timing distortion. This is far superior to optical isolators which introduce significant timing distortion into the signal path. That timing distortion must then be compensated for, usually by decreasing the pulse rate, to maintain the timing requirements of the driver. With the high speed XD14 you will no longer need to worry about this compensation. The XD14 has been tested to work with both EMC2 and Mach3 and is fully compatible with other CNC software packages as well.
