Heavy cast iron machine stand equipment support column
* Heavy Cast Iron Machine Stand Equipment Support Column
* Was last used to support a machine's pneumatic slide, which I don't think was its original purpose.

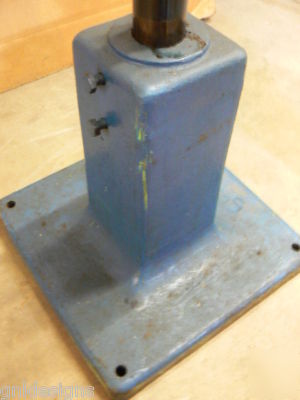

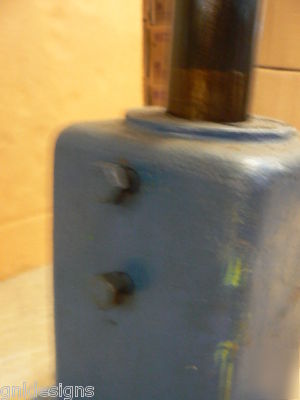

* 14" square x 14" tall cast iron base

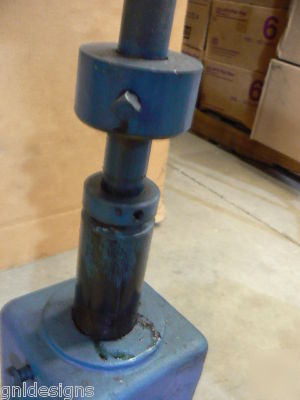

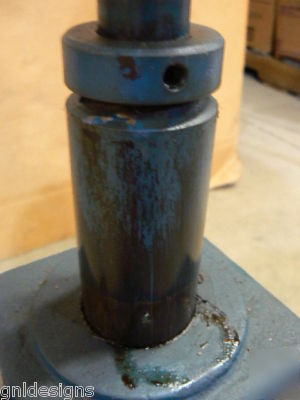

* The 2" diameter (actually slightly less) shaft slides up and down in the base (2" shaft is about 11" tall below the set screw collar)
* 1-1/8" diameter (slightly less) rod is attached to the top of the 2" shaft (about 13-1/2" tall)

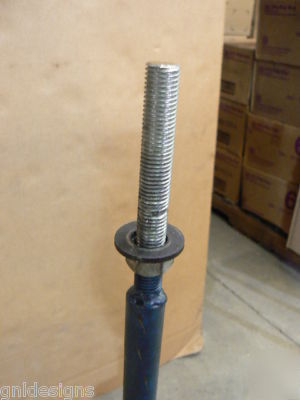

* Welded to the top of the rod is a threaded rod with nuts (6" long)

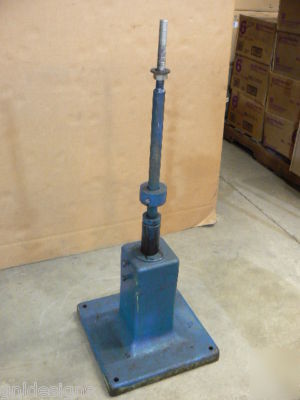

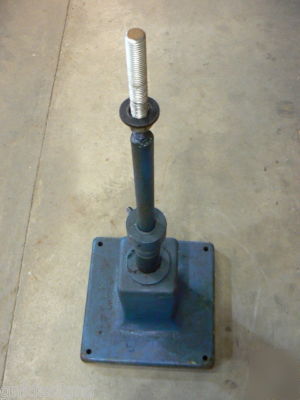

* Approximate overall height when shaft is fully extended: 43" tall overall
