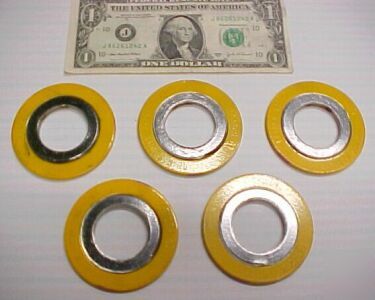

5 spiral wound pipe flange gasket seal graphite 304 ss
LEADER GT 1" 150# 304/NASB ASME B16.20 T4122BK
Inner seal element (spiral) thickness: .195"
Leader GT SR style consist of a metal guide ring and a spiral wound sealing element.
Description: This gasket consist of a metal guide ring (or sometimes referred to as a centering ring) and a spiral wound sealing element. The outer ring is often made of carbon steel (painted or zinc plated to prevent corrosion) but can be made of alloys for higher temperature and more severe process applications.
Winding Material Available: 304SS, 316SS, Alloy 20, Monel , Hastelloy , Inconel other exotic metals.
Filler Materials Include: Leaderfite, GTB GRAFOIL flexible graphite, PTFE and Ceramic.
* Industry standard sealing solutions for pressure piping and vessels in the chemical and refining markets.
Advantages: Gaskets are manufactured in accordance with all Global Industry Standards including ASME and EN/DIN. Leader assures strict adherence to these specifications as routine inspection procedures are applied throughout the manufacturing process. Leader maintains 100% traceability of all materials and finished goods used in our manufacturing process. Leader Global Technologies maintains an ISO 9001-2000 Certification.
Operating Limits** & Specifications
** Test data available upon request
*** Check Leader Global Technologies for oxidizing applications
Applications: This profile is normally used in raised and flat faced flanges.
