> New 36" tan itz vertical bandsaw, model #3600MH, #2131
New 36" tan itz vertical bandsaw, model #3600MH, #2131

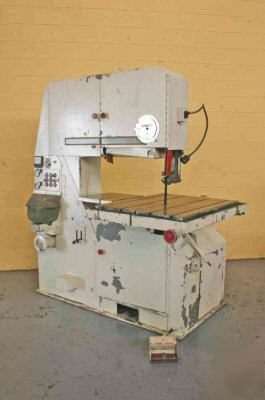

36" TANNEWITZ VERTICAL BANDSAW
SERIAL ................................. 15147
MODEL .................................. 3600MH
DEPTH OF THROAT ........................ 36
DEPTH OF AUXILARY THROAT ............... 24
MAXIMUM UNDER GUIDE .................... 13
AREA OF TABLE .......................... 32 X 34
HYDRAULIC TABLE TRAVEL ................. YES
STROKE OF TABLE ........................ 13
TABLE FEED ............................. 0 TO 14 FPM
TABLE TILTS ............................ 10 DEGREES LEFT, 45 DEGREES RIGHT
BLADE SPEEDS ........................... 45 TO 9000 FPM (VARIABLE)
WIDTH OF BLADE ......................... 1/8 TO 1-1/4
LENGTH OF BLADE ........................ 14'10 2-WHEEL, 17'2 3-WHEEL
BLADE WELDER ........................... YES
FOOT CONTROL FOR TABLE FEED ............ YES
MOTOR .................................. 10 HORSEPOWER
HYDRAULIC MOTOR ........................ 1/2 HORSEPOWER
MORE PHOTOS AND DETAILS @: http:// /msms/machine.asp?stock=2131
YODER MACHINERY SALES DOES NOT OFFER SECOND CHANCE OFFERS!
OVERALL MACHINE DIMENSIONS : 7' 4"(L) X 4' 6"(W) X 7' 5"(H)
OVERALL MACHINE WEIGHT : 4,850 LBS
MACHINE LOCATED AT YODER MACHINERY SALES IN TOLEDO, OHIO.
