Mastech HY1505D dc power supply var 0-15 volts @ 0-5 a

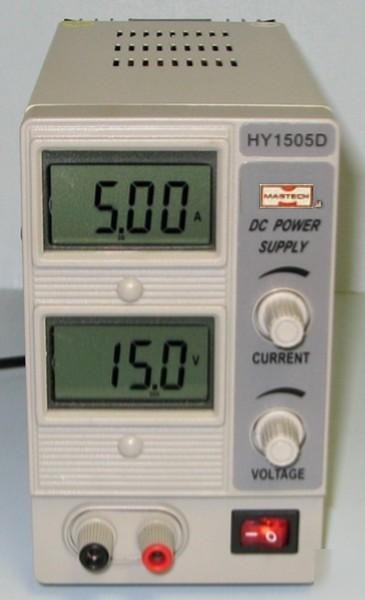

MASTECH HY1505D DC POWER SUPPLY
VARIABLE BETWEEN 0-15 VOLTS @ 0-5 AMPS
MASTECH HY1505D LAB GRADE DC POWER SUPPLY
VARIABLE BETWEEN 0 - 15 VOLTS @ 0 - 5 AMPS
DIGITAL BACKLIT LCD METERS DISPLAY VOLTAGE + CURRENT
The MASTECH HY1505D is a high quality variable voltage and variable current DC power supply.
Variable DC Power Supply is excellent for lab, science projects, ham radio, tattoo, slot car or any other use where stable voltage up to 15 volts is required.
The voltage is variable from 0 to 15 volts and the current is also variable from 0 to 5 amps.
The digital backlit LCD display meters display the actual voltage and current within 2.5 percent.
* Output Voltage : 0- 15V @ 5A
* Constant voltage/ Constant Current
* Voltage and Current adjustment
* Power effect: CV<0.01%+1mV, CC<0.2% + 1mA
* Overload effect: CV<0.01% +3mV, CC<0.2% +3mA
* Waves and noises: CV<0.5mV r.m.s, CC 3mA, r.m.s
* Protection: High current limited.
* Operating Temperature : 0 - 102 F ( 0 -40 C), Relative Humidity: <90%
* Meter Accuracy is within + or - 2.5%
