Hytrol horizontal belt conveyor model rb

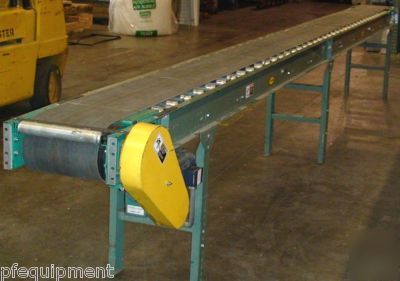

23 Foot Hytrol Horizontal Belt Conveyor Model RB
We are pleased to offer you this nice
23 Foot Hytrol Horizontal Belt Conveyor
This Hytrol Horizontal Belt Conveyor Model RB is designed to move heavier unit loads. Roller bed design reduces belt friction and provides greater capacity.
The belt is 12" wide and the speed is 65 FPM. Adjustable height from 28" to 40".
1-(***)-990-2440 to set up a time to look at the conveyors we have to offer.
This item will be skidded for $50. Strapped and/or bolted to the skid. If you prefer to have this item crated, please contact us for a crate cost.
* Bed: Roller bed with 1.9" dia. roller x 16 ga. galvanized tube spaced every 6". Mounted in 6 1/2" x 12 ga. powder painted formed steel channel frame bolted together with splice plates.

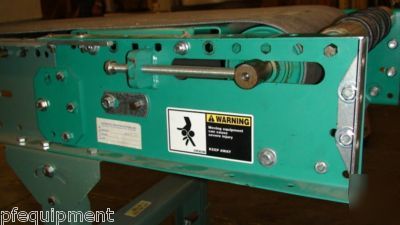

* Cross Bracing: Rods with turnbuckles are fastened to underside of bed to provide proper alignment of bed rollers and insure correct product tracking.

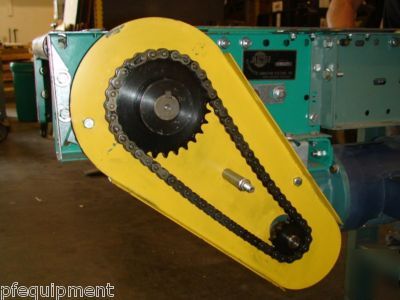

* Drive Pulley: 8" dia. with 1 7/16" dia. shaft at bearings, fully lagged

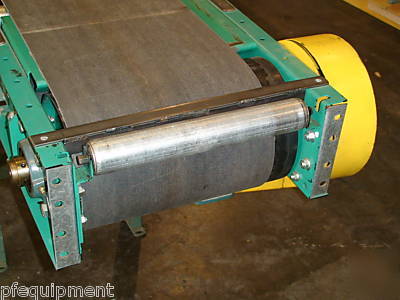

* TAil Pulley: 4" dia. with 1" dia. shaft at bearings or 6" dia. with 1 3/16" dia. shaft at bearings, machine crowned.
* Belt Speed: Constant 65 FPM
* Bearings: Sealed, pre-lubricated, self-aligning, ball bearings on drive and tail.
* Entire unit consists of 4 sections - Two 10' long conveyor sections, One drive pulley section, One tail pulley section.
* Supported by three MS-6 leg sections
* Adjustable in height from 28" to 40"
