Auto car meter thermometer digital blue led DS18B20 out

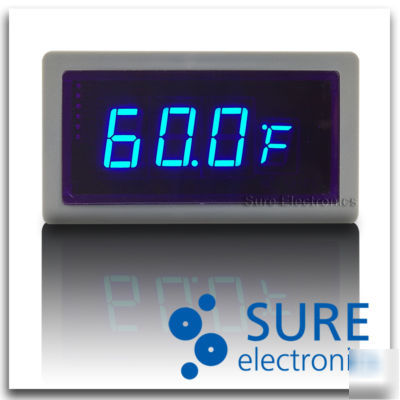

0.56 Digital Blue LED Panel Meter thermometer External
Note: Heat is measured by Fluke Ti20 Thermal Imager
79.00 (mm) X42.00(mm) X25.00(mm) 0.2mm
As the blue version of ME-SP334 by Sure Electronics, ME-SP334B is a newly released digital LED thermometer by Sure Electronics. With the help of an advanced DS18B20-based thermo probe, this thermometer has extended its application range since the accuracy of thermo probe can be as high as 0.5 C. Thanks to the 1-wire bus architecture of DS18B20 and the stainless steel sheath that allow us to put it in extreme harsh conditions.
Other features include the ability to show temp readings in either C or F, wide viewing angle and clear contrast.
* Wide temperature measurement range
* An advanced DS18B20-based thermo probe is offered
* C/ F selectable by setting k1 and k2 on DIP switch
* Automatic switch between C and F display with the change of ambient brightness
* The scalability that allows you to connect an extra external thermo probe to measure temperature of another applicaiton environment and display temperature readings in turn
* Miniature housing which facilitates installation and integration in other applications
* Large (0.56 /14.2mm) easy-to-read blue LED display
* Over 90% components are SMT based, which are reliable and environment-friendly
* High-efficient DC-DC converter for powering, much lower operation temp rise than other competitive products
* UL and CE-certified compound AWG22 cables are used, low voltage drop
* -10 to +60 operating temperature range
* Ideal for automotive and industrial applications
3 digits 0.56"/14.2 mm high LED
1 digit, 0.39 /9.9 mm high LED
* Temp measurement in household families, Offices or PC rooms
* Vehicles water temp measurement
* Temp measurement in refrigerator, air-conditioner, PC case and water heater
0.56 Digital Blue LED Panel Meter External 1
DS18B20-based precise external thermo sensor HKM-WF176 1
Go to Download Center for manual.
