T962 infrared smd & bga ic automatic reflow oven

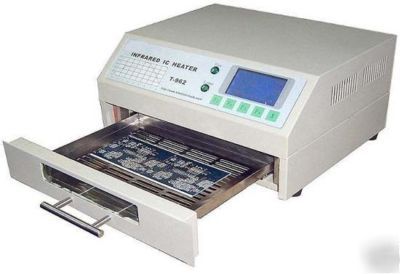

T962 INFRARED IC HEATER and REFLOW OVEN
This self-contained reflow station allows safe soldering techniques and the manipulation of SMD BAG and other small electronic parts mounted on a PCB assembly. The T962 may be used to automatically re-flow solder to correct bad solder joints, remove/replace bad components and complete small engineering models or prototypes.
A windowed drawer is designed to hold the work-piece. Thermal cycle accuracy is maintained by closed loop micro-computer control with infrared heaters, thermocouple and circulating air.
The T962 is simple to use, the soldering process is completely automatic defined by pre-defined thermal cycles,
1.The T962 is a self-contained Micro-Processor controlled IC Heater and solder rework station.
2.Uses up to 800 watts of energy efficient Infrared heating and air circulation to re-flow solder in a large 180 235mm area.
3.Parameters of Eight (8) Soldering cycles are Pre-Defined
4. Soldering cycles are keypad selected and progress displayed on the T962 LCD.
5. A single windowed drawer holds assemblies within the heating chamber,
6.The T962 design is ergonomic, practical and easily operated.
7.The entire soldering process is completes automatically from Preheat, Soak and Reflow through cool- down.
8. The T962 design is ergonomic, practical and easily operated.
9. The T962 is an economical rework solution from single runs to on-demand small batch production.
10. Light weight and a small footprint allows the T962 to be easily bench positioned transported or stored.
11.The T962 can solder most bosseyed or double-face PCB boards small parts, ie.: CHIP SOP PLCC QFP BGA etc; Can be used to the gum of the product solid, turning the circuit board hot aging, maintaining the PCB board and so on. Be satisfied to the needs of academe , smallorder run and extensively development of enterprise & company
