> Solenoid delco 1118128 navistar 4504365R1 P515-A57V12

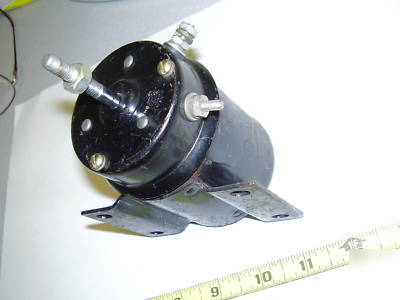

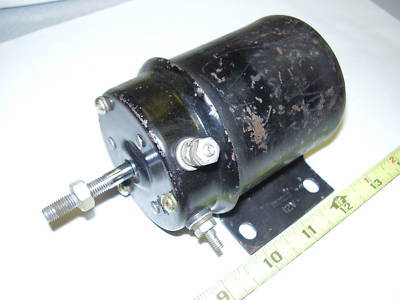

Solenoid delco 1118128 navistar 4504365R1 P515-A57V12

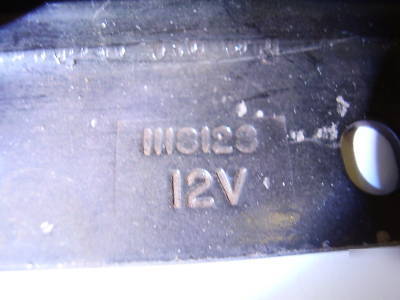

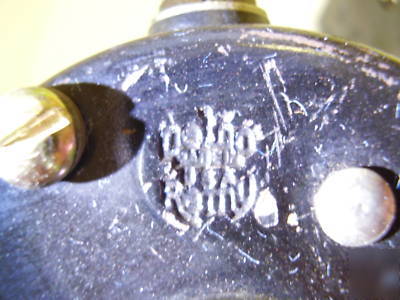

Stamped: Delco Remy USA, 12v, 1118128
Rod is 1/4 inch diameter with 1/4-28 thread and extends 1.5 inches in the normal (not energized) position
The stroke when energized is about 3/8 of an inch, and pulls the rod in
The mounting bracket has 4 holes for 1/4 inch bolts in a 1.75 by 3.06 pattern
The electric treminal are #8 - 32
