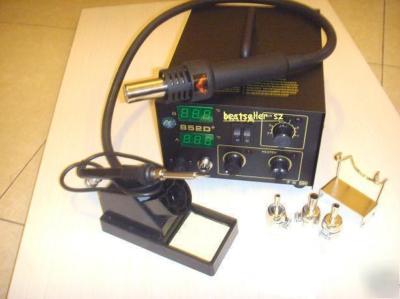

Smd rework soldering station hot air & iron 2IN1
FOR SOLDERING AND DESOLDERING brand new!
This special unit is a combination of both hot air soldering station and soldering iron, for soldering and desoldering SMD and some through hole components. The hot air gun can be used for easily removing and soldering various devices such as QFP,SOP,PLCC,SOJ,CHIPS, the soldering iron is mainly for soldering.
It has three knobs which control hot air volume, hot air temperature, and soldering iron temperature. The temperature range of hot air is from 100 -420 , for soldering iron is from 200 -480 .The hot air knob has 8 shifts, which provide diffrent speed and volume of air flow for diffrent use. The air flow is strong(0.3-24L/min) and stable. With two LED digital display for hot air and iron, you can easily get your desired temperatures. The machine provides stable temperature, which is not effected by the volume of air flow.
The soldering iron can be unpluged or pluged easily, ESD SAFE design provides extra safety for sensitive components, high quality ceramic heating element rises the iron temperature rapidly in 3 second.
It also has an automatic cooling system, when you switch off the hot air, the automatic cooling system begins to work, provent the heating element from overheating.
complete english and spanish manuals
Specifications of hot air gun:
Air flow: 0.3- 24L/min. Adjustable
Specifications of soldering iron:
holder for handle of hot air soldering head
3 free Nozzles(nozzles size: 5mm, 7mm ,10mm)
