Shars 4 SV440 cnc milling vise for kurt chick parlec

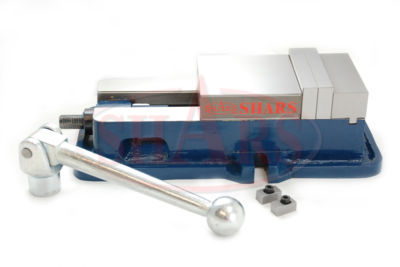

Shars New 4" SV440 CNC Milling Machine Vise +/- 0.0004"
* Jaw Opening (Inner Jaw): 4"
* Jaw Opening (Outer Jaw): 10"
* Bed Height: 2.25" +/-0.0005"
* Jaw Plate Threads: 3/8"-16
* Jaw Plate Threads Spacing: 2.500"
Our newest SV series vises can compete head-to-head with other popular brand's vise on the market and outperform in a highly demanding manufacturing environment. Improving on industry standards, SV440 vise has the tightest tolerance on key specifications such as clamping repeatability, bed height, parrallelism between bedway and base, and perpendicularity between jaw plate and bedway and improvement to prevent jaw lifting on movable jaws. SV440 is designed and manufactured to be the ultimate vise at an affordable price and back by lifetime limited warranty.
* Unlike other less expensive import vises, SV440 offers key improvements to prevent jaw lifting by using a 45 degree wedge and a pivoting ground finished steel hemisphere in a milled pocket to hold down the movable jaw while stationary jaw features integral key to increase holding strength and hold down by 2 large cap socket screw (3/8" x 2-1/4")
* Vise spindle nut completely conceal leadscrew to prevent chips from damaging leadscrew's thread
* Up to 6500 Lbs of clamping force
* Bed height matched to 2.25" +/- 0.0005"
