Yaesu ft-7800R 144/430 mhz dual band fm transceiver

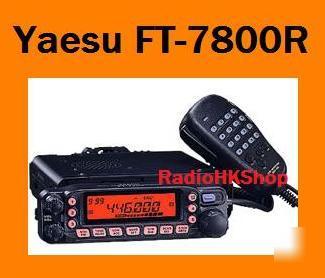

This is the Yaesu FT-7800R 144/430 MHz Dual Band FM Transceiver.
The FT-7800R provides 50 Watts of power on the 144 Mhz band, and 40 Watts on the 430 MHz, and is designed for simplicity of operation along with high performance in the receiver section. The FT-7800R is ideal for the active Ham who has a need for simplex, repeater, or FM satellite operation on both bands, but without the complication of cross-band repeat capability, which is available on our FT-8800R and FT-8900R models.
The FT-7800R s DTMF signaling capability includes provision for easy access to Yaesu s WiRES (Wide-coverage Internet Repeater Enhancement System) Internet linking nodes, as well as other linking systems that require a DTMF string for access.
Boasting a big 50 Watts of power output on 144 MHz, and 40 Watts on 430 MHz, the FT-7800R also includes provision for three lower power levels, so you never have to use more power than you really need. The power level is stored in regular and Hyper Memory registers, too
The FT-7800R provides receiver coverage from 108 to 520 MHz, and 700 to 999.99 MHz (cellular blocked), so you have available a wide range of monitoring excitement, including AM Aircraft, Public Safety, Government, Business, and, of course, Amateur communications. The synthesizer steps appropriate for the operating band are automatically selected, too!
A special memory bank on the FT-7800R allows instant recall of the ten NOAA Weather frequencies. What s more, you can enable a special Severe Weather Alert feature that will sound an alarm when a NOAA station transmits the special alert tone during a severe weather alert broadcast.
Using the optional YSK-7800 Separation Kit, which contains both cabling and a bracket for the remote front panel, you can mount the FT-7800R s front panel on the vehicle s dash board, then stow the radio s body under the seat or in some other convenient, out-of-the-way location. The cables are approximately 20 feet (6 m) in length.
700.000 - 999.990 MHz (Cellular Blocked)
TX: 144.000 - 148.000 MHz or 144.000 - 146.000 MHz
430.000 - 450.000 MHz or 430.000 - 440.000 MHz
0.8 V (TYP) for 10 dB SN (108 - 137 MHz, AM)
0.2 V for 12 dB SINAD (137 - 150 MHz, FM)
0.25 V for 12 dB SINAD (150 - 174 MHz, FM)
0.3 V (TYP) for 12 dB SINAD (174 - 222 MHz, FM)
0.25 V (TYP) for 12 dB SINAD (222 - 300 MHz, FM)
0.8 V (TYP) for 10 dB SN (300 - 336 MHz, AM)
0.25 V for 12 dB SINAD (336 - 420 MHz, FM)
0.2 V for 12 dB SINAD (420 - 520 MHz, FM)
0.4 V (TYP) for 12 dB SINAD (800 - 900 MHz, FM)
0.8 V (TYP) for 12 dB SINAD (900 - 999.99 MHz, FM)
50 , unbalanced (Antenna Duplexer built-in)
5 ppm @ 14 F ~ +140 F ( 10 C ~ +60 C)
4 F ~ +140 F ( 20 C ~ +60 C)
13.8 VDC ( 15%), negative ground
5.5" x 1.6" x 6.6" (140 x 41.5 x 168 mm)
