Shop fox vertical mill w/power feed and digital readout

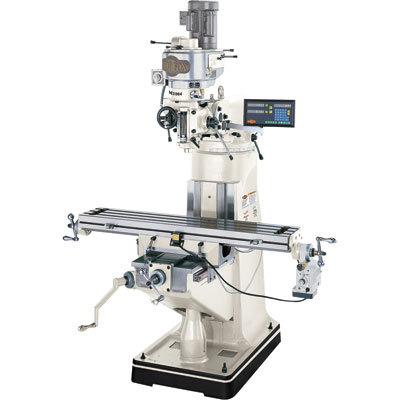

SHOP FOX Vertical Mill w/Power Feed and Digital Readout
The SHOP FOX Vertical Mill M1004 is constructed of heavy-duty cast iron and hardened precision ground steel, providing the size and stability to handle the toughest jobs. With a 2 HP motor driving 8 speeds from 78 to 2400 RPM, 3-speed quill feed with a micrometer depth stop and auto reverse, and a variable speed longitudinal power feed, this machine has the ability to do the most complex and precise jobs. For added performance, the M1004 includes a 2-axis digital readout. HP: 2, Volts: 110/220V pre-wired 110V, Speed (RPM): 78 - 2,400, Speeds (qty.): 8, 360 Head Swivel: No, Draw Bar: Yes, Chuck Size (in.): R - 8, Max. Spindle Distance (in.): 18 3/4, Worktable L x W (in.): 9 x 49, Light Included: No, Stand Included: No, Dimensions L x W x H (in.): 66 1/2 x 66 1/2 x 85 2-axis digital readout with up to 5um resolution, machine error compensation, absolute/incremental coordinate display, arc/line of holes/angled cut functions, and 199 user defined datum points One-shot pump lubrication Auto down feed Quill feeds/spindle rev.: .0019in., .0035in., .0058in. Auto-stop with micro adjustable stop R-8 spindle Longitudinal power feed Hardened and ground table surface Chrome-plated, precision-ground quill Adjustable micrometer quill depth stop Spindle travel: 5in. Table travel (longitudinal): 27in. Table travel (cross): 12in. Max. dist. spindle to column: 18 1/2in. Knee travel: 16in. Head tilt: 45 both ways Head swivel: 90 both ways T-slots: 3 on 2 1/2in. centers, 1/2in. studs Speeds: 78, 98, 197, 278, 670, 850, 1700 and 2400 RPM
