New ac/dc clamp-on current probe-1000 amp * *

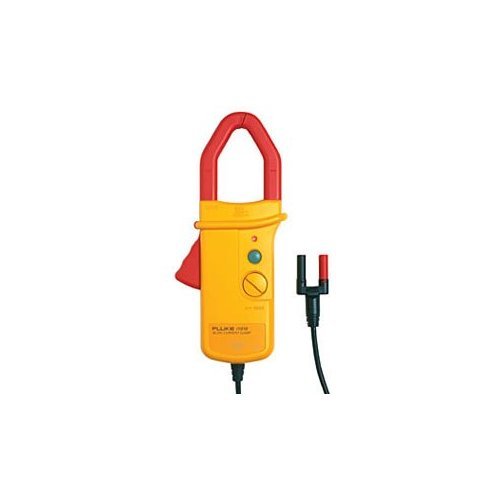

AC/DC Clamp-On Current Probe - 1000 Amp *NEW*
AC/DC Clamp-On Current Probe - 1000 Amp Battery-powered dual Hall-effect, clamp-on probe measures AC current to 700A, DC current to 1000A. Thumbwheel ZERO control compensates for residual core magnetism, improving the range of DC measurements down to 1A. Output is 1mV per amp DC or AC. Maximum conductor size: one 1.18" (30mm) or two each 0.98" (25mm). Accuracy: (2% of reading 1A), 1A to 100A, DC to 62 Hz; 3%, 100A to 700A, DC and 48 Hz to 62 Hz; 5%, 700A to 1000A CD only. Useable to 440 Hz.
* SKU: 617ab685ea69462c7e3fc0b4b3663a0e
