> CABLE133 motorola 20-pin cdm CDM1250 CDM1250 repeater
CABLE133 motorola 20-pin cdm CDM1250 CDM1250 repeater

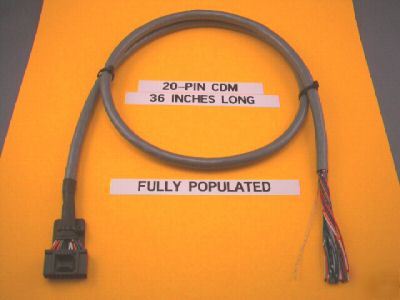

(One) 36" shielded cable assembly with perfect-fit latching plug at one end to mate with Motorola radios having a 20-pin rear accessory connector, i.e.: CDM750, CDM1250, CDM1550 and PRO series.
All 20 pins of the radio accessory connector are brought out to individually color-coded flying leads (24 gauge stranded wires). The bare shield conductor is wired to pin 7 of the connector (ground). These well-constructed cables are perfect for conveniently interfacing 20-pin Motorola radios to consoles, repeater controllers, tone panels, tone remote adaptors, TNCs, interconnects, etc.
This item can also be used to inexpensively construct your own flash programming and test cable, equivalent to Motorola's expensive AARKN4083 cable assembly. This will allow you to program, test, align and flash upgrade your radio via the 20-pin accessory connector. Includes data sheet with radio pin-outs, wire color codes, and AARKN4083 wiring diagram. Hard-to-find item, reasonably priced.
NOTE: I also offer a 16-PIN version of this same cable for Maxtracs and GM300's, as well as several other kits and parts. Please view my other items to see them all. Special configurations (custom cable lengths, etc.) are available, too - with fast turnaround and no minimum order. If you don't see what you need, please ask.
