Aemc megohmmeter 3610 3 point ground resistance testing
A FIRSTY QUALITY AEMC INSTRUMENTS SERVICE TOOL, EXACTLY AS PICTURED. INCLUDES EVERYTHING IN THE PERSONAL PHOTOS. IF YOU DON'T SEE IT IN THE PERSONAL PHOTOS, THEN IT IS NOT INCLUDED.
THE SAME QUALITY TOOLS THE PROS USE -THE MOST EXPENSIVE TOOL YOU'LL EVER OWN IS A CHEAP TOOL - GET THE RIGHT TOOL FOR THE JOB.

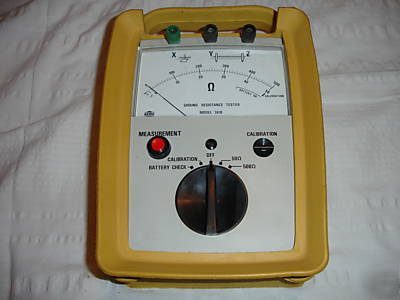

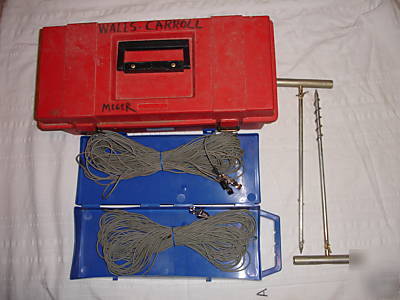

INCLUDES 2 SETS OF LEADS (2 x 20 FEET AND 2 x 100 FEET CLIPPED LEADS AS SHOWN), 2 16-17 INCH GROUND ELECTRODES (WHICH COME IN THE BLUE STORAGE CASE), THE METER-UNIT ITSELF AND SEVERAL PIECES OF LITERATURE TO INCLUDE:

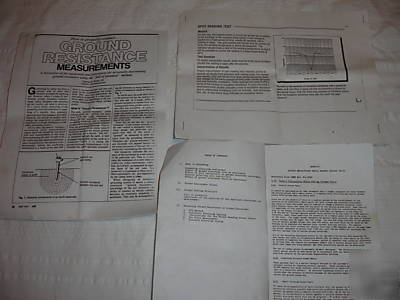

"HOW TO PROPERLY CONDUCT GROUND RESISTANCE MEASUREMENTS - A DISCUSSION OF THE EQUIPMENT AND PROCEDURES FOR ACCURATELY DETERMINING GROUND RESISTANCE USING THE "FALL OF POTENTIAL" METHOD." (6 PAGES)
17 PAGE PAMPHLET CONTAINING INFO ON - WHAT IS GROUND?, GROUND RESISTANCE VALUES, GROUND TESTING PRINCIPLE AND MEASURING GROUND RESISTANCE OF GROUND ELECTRODES. (17 PAGES)

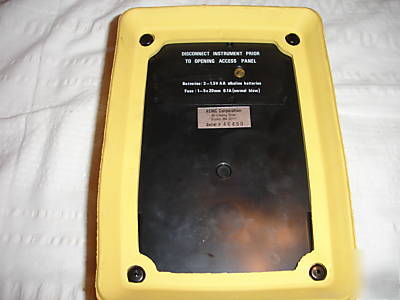

"3 - POINT GROUND RESISTANCE TESTER" SERIAL # 46450
THE AEMC MODEL NUMBER IS # 3610 ( THIS MODEL HAS BEEN REPLACED BY THE SIMILAR 3620 WHICH LOOKS DIFFERENT BUT IS NEAR IDENTICAL IN FEATURE/FUNCTION WITH THE BIGGEST DIFFERENCE BEING A RESISTANCE READING CAPABILITY OF UP TO 1,000 OHM).
AEMC 3620 2114.90 3-Point Ground Resistance Tester
* Fall-of-Potential method for 2- and 3-Point ground resistance tests
* Direct reading on large analog display 0.5 to 1000 and easy 25 readings
* Large 3.1" (77mm), easy-to-read scale for accurate readings
* Three color-coded terminals
* Large press-to-measure buttons
* Extremely simple to operate: connect - press - read
* Designed to reject high levels of noise and interference
* Includes soft carrying case, batteries, and manual
The Analog Ground Resistance Tester Model 3620 performs ground resistance measurement from 0.5 to 1000 with speed and accuracy. The Model 3620 features three-terminal operation for fall-of-potential earth/ground resistance, and may also be used for 2-Point tests.
The large 3.1" logarithmic scale is easy to read, with a separate marking for 25 . A large Press-to-Measure button allows for easy measurements. A manual zero adjust is provided for accurate readings. Color-coded terminals are easy to use banana plug inputs and binding posts.
Models, Options, & Accessories
Ground Resistance Tester Model 3620 (Analog, 3-Point)
You may qualify for better pricing.
Please call 877-742-TEST (8378)
Ground Resistance Tester Model 3620 Kit (Model 3620 & Cat #2130.62) See Replacement 3620Kit - Cat. #2135.10, Model 3620 Kit - Discontinued - replaced by AEMC 2135.10
Please call or email us for pricing and availability.
Calibration Checker - 25 Ohm for Models 3620/3640/4610 - Discontinued - replaced by AEMC 2130.59
Ground Rod Set of 2, 14.5" T-shaped Auxiliary Ground Electrodes
5% + 0.1% of galvanometer scale length
Rz: 3000 times the reading up to 50kW, Ry: 50kW
23 C 3K, 50% RH 10%, battery at 8V 0.2V, externa; magnetic field <40A/m, external field <1 V/m, conductor centered, loop resistance noninductive. Accuracy % of reading
Resistance Measurement Frequency
250Vrms with spikes of 3000VAC or 1000VDC
Eight 1.5V "AA" Alkaline batteries
1680 fifteen-second tests (approximately)
High breaking capacity 0.1A, 250V, 0.25" x 1.25"
Color-coded terminals accept spade lugs with minimum gap of 6 mm or standard 4mm banana jacks
3.1" (77mm) white scale with black pointer; one scale per range
-40 to 158 F (-40 to 70 C), 0 to 90% RH with batteries removed
8.7 x 5.4 x 5.9" (220 x 136 x 150mm)
Case: safety yellow; Front panel: gray
O-ring sealed against dust and water to IP50
Safety Reference Specifications
IEC 1010-1 Cat III Pollution Degree 2, 24V
Emission: EN 50081-1; Immunity: EN 50082-1
VERY GENTLY USED ONE TIME. IT LOOKS ALL BUT NEW - THIS IS AS CLEAN AN OUTFIT AS YOU WILL EVER COME ACROSS, CERTAINLY SHOWING NO SIGNS OF ABUSE OR REPAIR - EXACTLY AS PICTURED - READY TO MAKE (OR SAVE) YOU SOME SERIOUS $$$$$.
