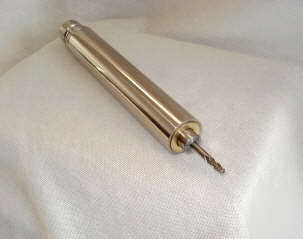

Db-200S high speed precision spindle. (cnc routers)
(I apologize for the delay, but it may take up to 5 days for delivery).
This spindle is designed with 1 High Speed Stainless Steel bearings in the head for heavier side cutting loads. This spindle is capable of routing materials such as Circuit Boards, Wood, Plastics, Wax,... ect. This spindle is great for prototyping, model making, engraving and much more. It also has the high tolerances needed to drill even the tiniest holes. It is commonly used with drill bits as small as .005" and is able to drill many holes with a single drill bit. This is very difficult to achieve with other router tools such a Dremel.

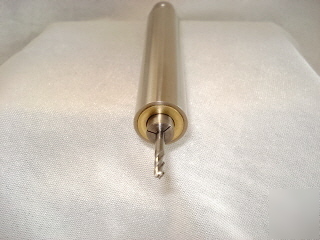

The collet is tightened by a 10-32 draw-bolt which runs through the center of the spindle shaft and pulls the 1/8" (OR a 3mm collet on request) into the taper and closes onto the cutter shaft, much like on a R8 collet systems of the popular Bridgeport brand.

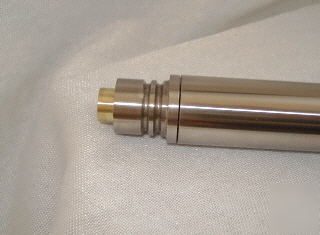

The housing and pulley are make of 303 Stainless Steel which are brought to a high finish. The uniquely designed hybrid spindle shaft is machined from 303 Stainless Steel and Brass. The collet is made of Leaded Steel to produce the high tolerances needed for this spindle.
Some of the spindles main features include:
* 2 Sealed and Greased Stainless Steel Bearings per Spindle.
*Stainless Steel Housing is Resistant to Scratches and Won't Tarnish.
* 1/8" (.125") Tri-Split Collet (OR 3mm on Request).
* Max Recommended Spindle Speed: 24,000 R.P.M.
* Average Bearing Life: 1000 Hours @ 20,000 R.P.M.
* Spindle Length Measures 5.000" and has A .750" Diameter Body.
* Each Spindle is Hand Crafted for "Hands-On" Quality Control.
Thanks for stopping by. Please let me know if you have any questions.
