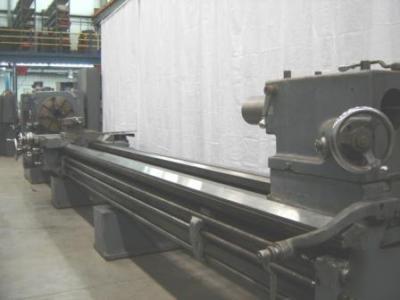

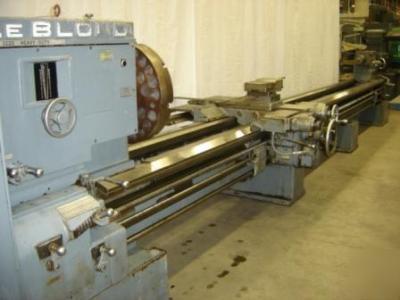

6224 leblond model 3220NF 32" x 240" lathe 2-1/2" hole

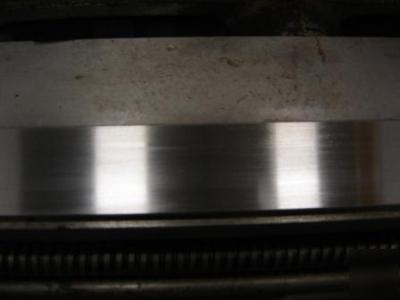

Swing over bed & carriage ways 32"

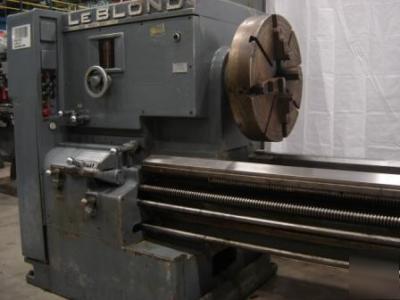

Headstock Spindle speeds, number 36
Spindle speed range 10-1300 RPM
Spindle diameter at bearings 5 " front 4" center 3 5/8" rear
Spindle diameter of hole straight 2 3/16"
Spindle, diameter of hole, taper (250ASA) 2 "
Spindle nose, tapered key drive L2
Headstock length of bed 38 1/8"
Tailstock Spindle diameter 6" Size of center Morse No. 5
Bearing surface, square inches 260

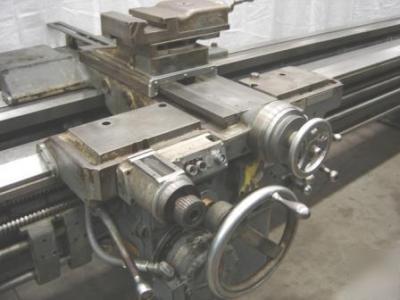

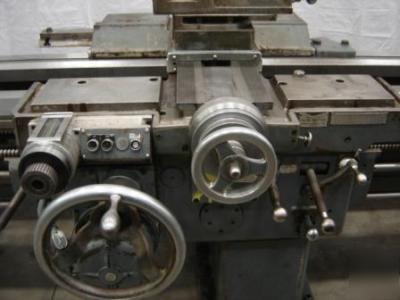

Cross slide travel 18 " w/ taper attachment 18 " w/o taper attachment Compound rest travel 5"
Specifications (continued) Leadscrew diameter & TPI 1 5/8", 2 Motor 40 Hp Approx weight 20,400 lbs
