Ocular 2 x 16 lcd character module OM1628-gnn-02

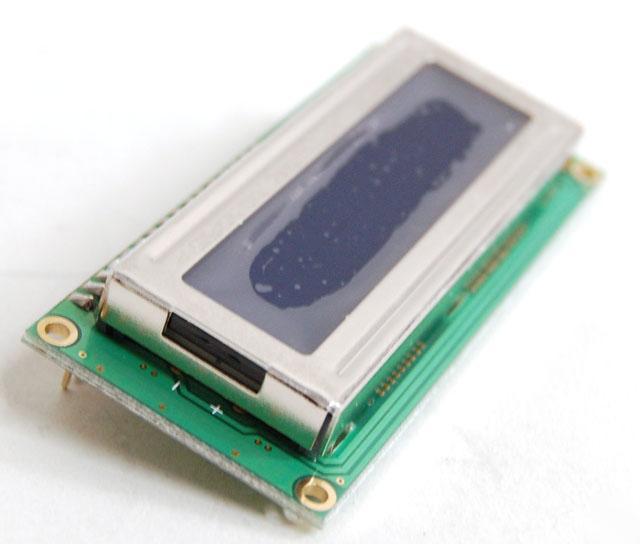

Ocular 2 x 16 LCD Character Module OM1628-GNN-02
* Outline dimensions: 80 mm (W) 36 mm (H) 13 mm MAX (D)
* Effective display area: 60.5 mm (W) 15.5 mm (H)
* Display format: 16 characters 2 lines
* Character format: 5 8 dots
* Character Size: 2.95 mm (W) 5.55 mm (H) ( 5 8 dots )
* Dot Size: 0.55 mm (W) 0.65 mm (H)
* Character color: Yellow ( with back light on )
* Background Color: Dark Blue
For Additional Technical Information: http://www.channel-microelectronic.de/ch_html_de/lcds/pdf/OM1628gnn.PDF
