New fluke 337 1000 amp true rms ac/dc clamp meter brand
Fluke 337 1000 Amp True RMS AC/DC Clamp Meter BRAND NEW
Guaranteed working condition!! DETAILS
Fluke 337 1000 Amp True RMS AC/DC Clamp Meter
The top-of the-line True-RMS clamp meter, large jaw measures ac/dc current and voltage, ohm, motor start-up current (in-rush), frequency, MIN/MAX capability and a large backlit display.
Small body and jaws fit perfectly in your hand and into tight places
Handy 'Display Hold' button keeps measurements on the display
Meter controls are positioned so current measurements can be done with one hand (index finger on clamp opening lever and thumb on rotary switch)
Large, backlit display is easy-to-see
In-rush current function for measuring starting current for motors, lighting, etc.
Auto shut-off maximizes battery life so the meter works when you need it
Improved low current measurement accuracy from new microprocessor technology
Voltage AC: Range: 0 - 600.0 V
Accuracy: 1% 5 counts (20-100 Hz),
Current AC: Range: 0 - 999.9 A
Accuracy: 2% 5 counts (10-100 Hz), 6% 5 counts
Crest Factor(50/60 Hz): 3 @ 500A, 2.5 @ 600A,
Resistance: Range: 0 - 600.0 Ohms, 6001 - 6000 Ohms
Trigger Level: 10-100 Hz >= 5A, 5-10 Hz,
Inrush Current: Integration Time: 100 ms
Operating temperature: -14 to 122 F, -10 to +50 C
Storage temperature: -22 to 140 F, -40 to +60 C
Operating Altitude: 2,500 meters max, 6,500 ft max
Temperature De-rating: Add 0.1 x specified accuracy for each F above 82.4 F
or below 64.4 F (above 28 C or below 18 C)
Safety Rating: IEC 1010-2-032, 600V CAT III
Size: 9.875" x 3.125" x 1.625" (250 x 80 x 40mm)
Battery life: Alkaline approximately 150 hours continuous
Automatic low battery indicator
___________________________________________________________________________________________________________________

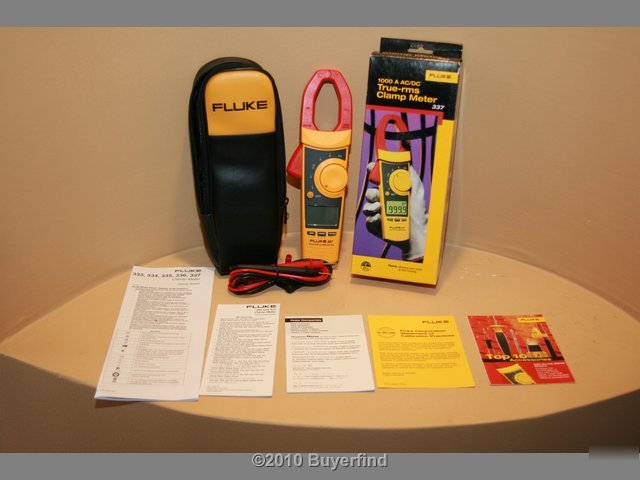

BRAND NEW: Fluke 337 1000 Amp True RMS AC/DC Clamp Meter BRAND NEW, as pictured.
If this item has a battery: we do not waranty batteries. If the pictures show the item "on", then the battery worked for the taking of the pictures. How long it will hold a charge and/or how old it is are unknown and are not guaranteed unless specifically stated otherwise.
