13" swg 40" cc bridgeport-romi tormax 13-5 engine lathe

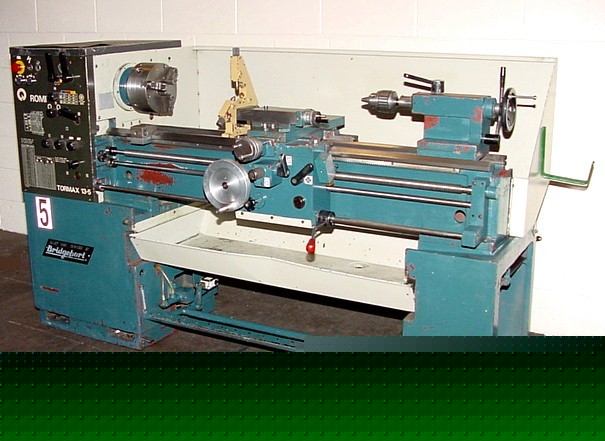

13" Swg 40" cc Bridgeport-Romi TORMAX 13-5 ENGINE LATHE
13" Swing 40" Centers Bridgeport-Romi TORMAX 13-5 ENGINE LATHE, Inch/Metric, 3-Jaw, 5 HP,
13" X 40" BRIDGEPORT-ROMI ENGINE LATHE
MODEL: TORMAX 13-5, NEW: 1990'S
HEIGHT OF CENTERS ....................... 6-1/2"
SWING OVER BED .......................... 12-13/16"
SWING OVER CARRIAGE WINGS ............... 11-7/16"
SWING OVER CROSS SLIDE .................. 7-5/16"
DISTANCE BETWEEN CENTERS ................ 40"
BED WIDTH ............................... 8-7/8"
(12) SPINDLE SPEEDS ..................... 50 - 2,500 R.P.M.
HOLE THROUGH SPINDLE .................... 1-9/16"
SPINDLE NOSE CAMLOCK .................... D1-4"
HEADSTOCK & TAILSTOCK SPINDLE TAPER ..... #3 MORSE
AMERICAN STANDARD THREADING RANGE (46) .. 4 TO 42 T.P.I.
METRIC THREADING RANGE (46) ............. 0.4 TO 7 MM
LONGITUDINAL (20) ................. 0.0016 - .0287 IPR
CROSS (20) ........................ 0.0007 - .0129 IPR
TAILSTOCK SPINDLE DIAMETER .............. 1-3/4"
TAILSTOCK SPINDLE TRAVEL ................ 4-3/4"
APPROXIMATE WEIGHT ...................... 2600 LBS.
INDUCTION HARDENED AND GROUND BED WAYS
INCH AND METRIC THREADING CAPABILITY
THREE-JAW CHUCK WITH REMOVABLE AND REVERSIBLE TOP JAWS
