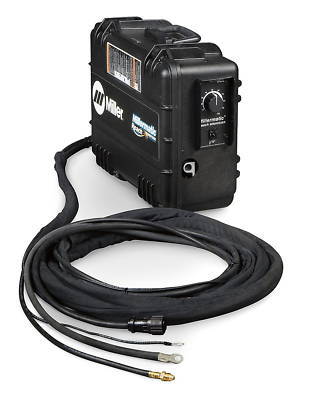

Miller 907438 millermatic reach 25 foot wire feeder
Use the Reach with your Millermatic 212 Auto-Set, 252, or 350/350P to extend your work area or to create a dual feeder, avoiding downtime from changing wire spools.
Extend your Millermatic work area up to 40 ft! No more moving the machine and pulling primary power cables around the shop.
Use as a dual feeder option! Keep one wire in the machine and a different wire in the feeder. No more downtime changing spools and drive rolls.
Auto-Gun Detect when connected to a Millermatic 252 or 350P, simply pull the
trigger on either gun and the Millermatic
machine will recall both voltage & wire feed
Synergic Pulse Capability when connected to Millermatic 350P. Remotely change weld output by simply adjusting wire feed speed setting at the feeder.
Patent-pending Hybrid Technology
connects to Millermatic 10-pin connector and
Polypropylene case with built-in slide rails gives you the ability to easily change wire when in vertical position.
Double-filtered gas valve helps keep dirt from clogging and affecting gas flow.
Works with any Miller-compatible MIG gun (MIG gun sold separately)
Compatible with the following Millermatic models:
*with Millermatic 350P model only
* 14 32 Operating Voltage,
* 50-700 IPM (1.3 17.8 m/min)
* .023 .052 in (0.6 1.3 mm)
* 45 lb (20.4 kg), 12 in (304 mm)
* 29 lb (13.2 kg) with 6 ft cable
* 48 lb (21.8 kg) with 25 ft cable
