New wilcom fiber optic light source (fs-1318 ) -

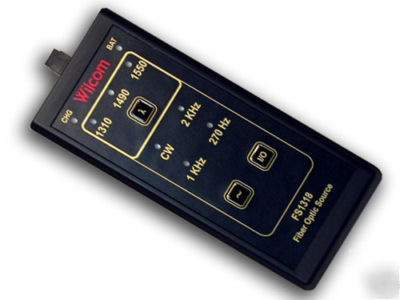

Wilcom Fiber Optic Light Source (FS-1318 ) - New New
Model/Part No:FS-1318 Our Item ID: 5422
Includes: One Wilcom Fiber Light Source (FS-1318 ).Please allow 1 to2 weekd lead time.
Wilcom Fiber Light Source (FS-1318). Please Allow 1 - 2 Week Lead Time.
The FS-1318 Laser Source is a hand-held battery powered
stabilized laser source with three laser outputs. Together with
Wilcom's FM-1317 power meter, this team makes the perfect
combination for accurately testing singlemode FTTH cable installations
including, cable attenuation, point-to-point connection
verification, end-to-end testing, and system installation
Model FS-1318 operates at 1310nm, 1490nm , and 1550nm
wavelengths with a single SC connector optical port allowing this
unit to test passive optical networks (PONs) at the three main
wavelengths recommended by the ITU-T (G.983.3) for use in
fiber-to-the-home (FTTH), and fiber-to-the-premise (FTTP)
networks.The highly efficient, stabilized output uses rear facet
diode technology to compensate for short and long-term drift.
The FS-1318 Laser Source features both continuous wave
(CW) and modulated output modes. In CW mode the units
feature extremely stable output power at 0 dBm for standard
optical loss measurements. In the modulated mode, each unit
provides 2kHz, 1kHz or 270Hz for fiber identification when used
in conjunction with Wilcom s Optical Fiber Identifier Models
F6121A, F6222 , F6222C, F6121R or the F6225.
0.0 dBm norminal into SMF 28 fiber
Two AA Alkaline Batteries or NiMHD ( optional )
Item Tested?: TestedPhysical Condition: Excellent; Working Condition: Fully Functional2 | 8x 8x4 | 1
